Vehicle Accessibility Facilities
Vehicle Accessibility Facilities

ES-F-S Series Electric Single Folding Step

  • ES-F series electric folding steps are designed to fit on range of vans, minibuses, motorhomes, ambulances and so on.

  • It can help passengers to get on vehicles easily.

  • It's driven by motor, voltage can be 12Vdc or 24Vdc.

  • The main material is aluminum which is light and has good corrosion resistance.

  • It can be operated by a switch or gang controlled by door.

  • This step can work steadily, reliably and safely.

  • We have single folding step, double folding step and triple folding step.

  • We have different steps with several specifications, which can meet different requirements.


Consult Now
Product Details
Technical Parameter
  • CE and EMARK certified;

  • Manual emergency function;

  • Door interlock function;

  • Sensitive edge;

  • 15kg sensitive loading function;

  • Warning sound during working

  • Auto sleep mode;

  • Low static power consumption, quiescent current is less than 0.2mA;

  • Warning in case of improper installation;

  • Self-protection in case of wrong connection;

  • LED and LED cover are equipped as standard


ES-F-S Series Electric Single Folding Step


Technical Specifications:

Volatge12Vdc or 24Vdc
Power30W
Loading capacity200kg

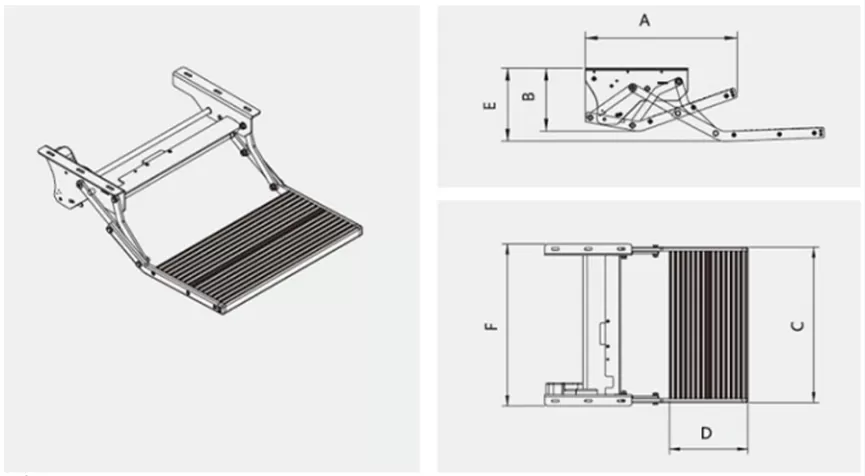

Parameters (unit:mm)

modelgross depth Agross thickness Bstep width Cstep depth Dheight(unfold) Egross width F
ES-F-S-450*300500180450300230476
ES-F-S-600*300500180600300230626
  • note: we can make step depth D as 235mm
