ES-S Series Electric Sliding Step

  • ES-S series electric sliding step is a kind of cassette steps which can help passengers to get on vehicles easily.

  • It is designed to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.

  • It is electrically operated slide in and slide out cassette step providing safe access to vehicle.

  • It's driven by motor, voltage can be 12Vdc or 24Vdc.

  • It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.

  • The main material is aluminum which is light and has good corrosion resistance.

  • It can be operated by a switch or gang controlled by door.

  • This step can work steadily, reliably and safely.

  • We have different steps with several specifications, which can meet different requirements.

Consult Now
Product Details
Technical Parameter
  • CE certified;

  • EMARK certified;

  • Pass IP57 Environmental test;

  • Compatible with LIN bus and CAN bus;

  • Manual emergency function;

  • door interlock function;

  • sensitive edge;

  • 15kg sensitive loading function;

  • strong pushing function to clear dust;

  • auto sleep mode;

  • low static power consumption, quiescent current is less than 0.2mA;

  • warning in case of improper installation;

  • self-protection in case of wrong connection;

  • LED and LED cover are equipped as standard

  • Test weight is 500kg

ES-S Series Electric Sliding Step


Technical Specifications:

Volatge12Vdc or 24Vdc
Power30W
Loading capacity250kg

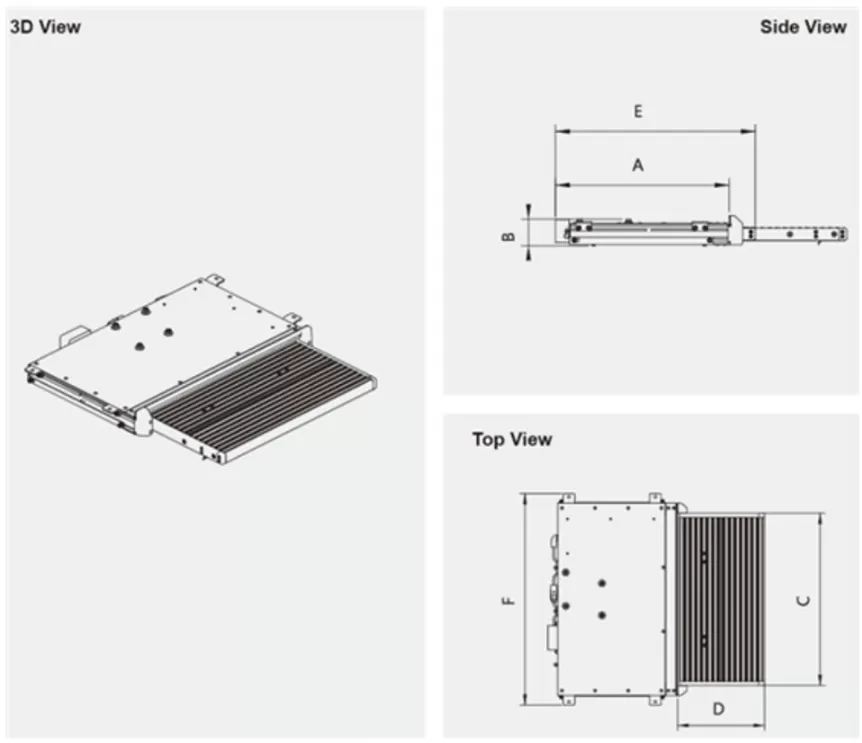

Parameters (unit:mm)

ModelDapth AThickness BPlatform width CPlatform Depth DOverall depth EOverall width F
ES-S-450*300448mm55-73mm450mm300mm516mm587mm
ES-S-600*300448mm55-73mm600mm300mm516mm737mm
ES-S-750*300448mm55-73mm750mm300mm516mm887mm
ES-S-1000*300448mm55-73mm1000mm300mm516mm1137mm
