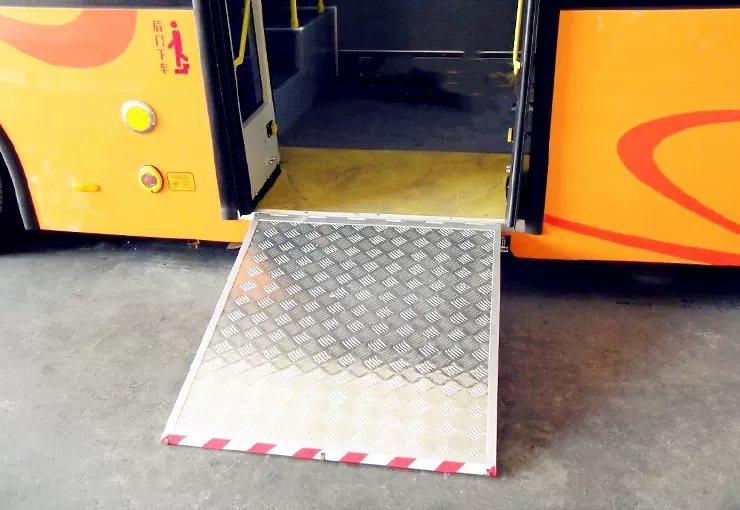

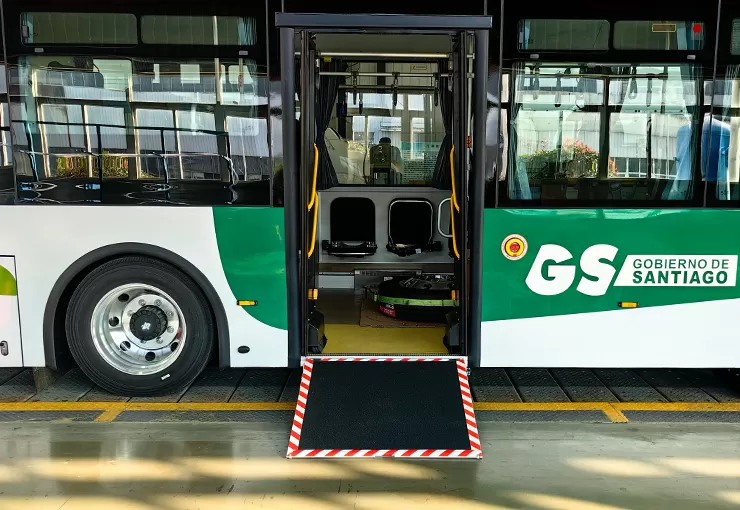

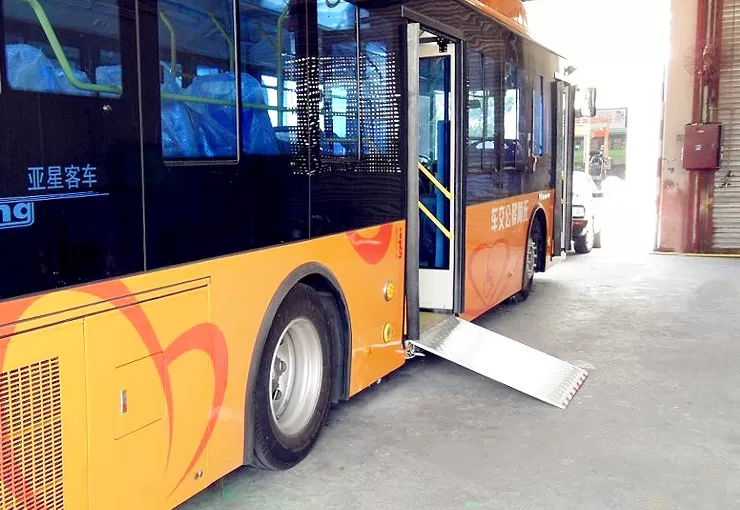

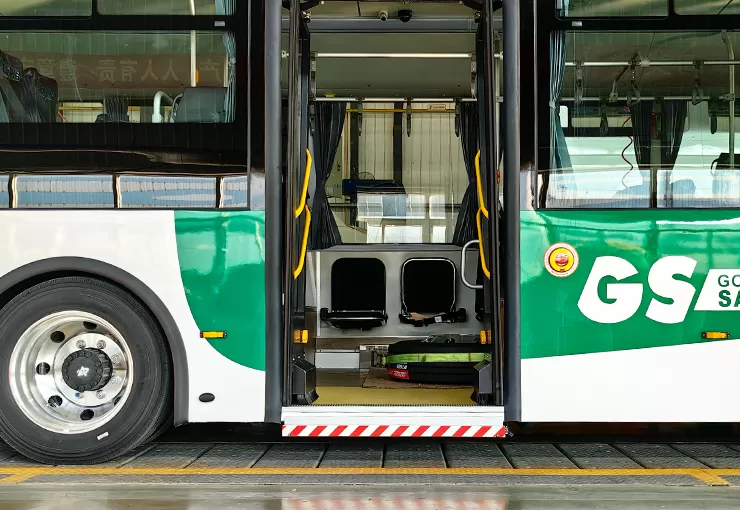

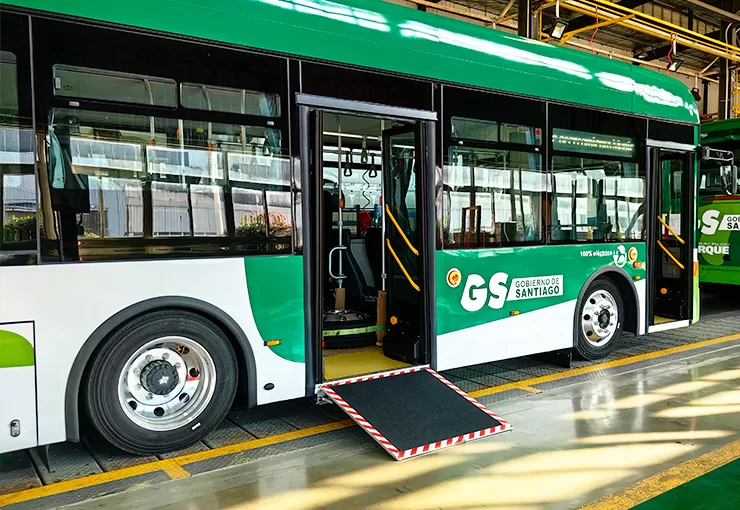

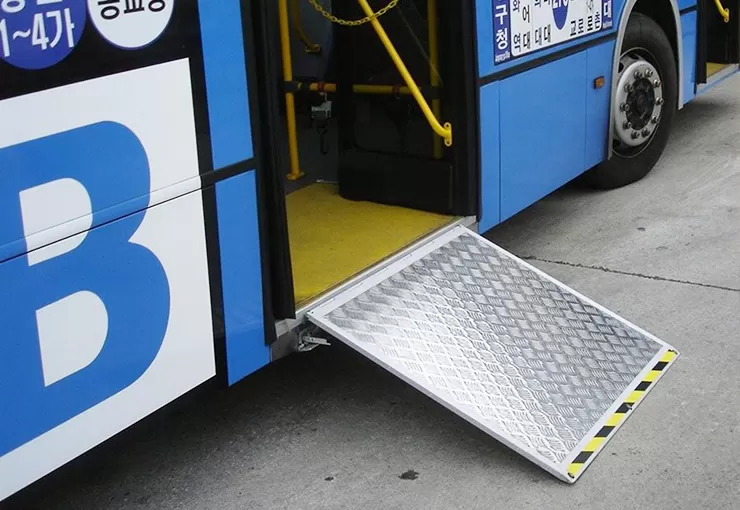

EWR-L Electric Wheelchair Ramp

  • EWR-L series electric wheelchair ramp is designed for city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

  • It is installed under bus chassis, and it doesn't obstruct view, access and emergency exit.

  • It is driven by motor.

  • It is controlled by switch.

  • Main material is aluminum, which is light and with high corrosion resistance.

Safety Certification
Safety Certification
Consult Now
Product Details
Technical Parameter
  • doesn't obstruct view, access and emergency exit when not in use;

  • warning sound during working;

  • manual backup function;

  • door interlock function;

  • anti-skip platform;

  • ramp will stop when touch some barrier during extending out;

  • optional function of 15kg loading induction.


EWR-L Electric Wheelchair Ramp


Technical Specifications:

Volatge24Vdc or 12Vdc
Max. Driving Current10A
Power40W
Max Loading Capacity350 Kg
Eliminate threshold drop60mm

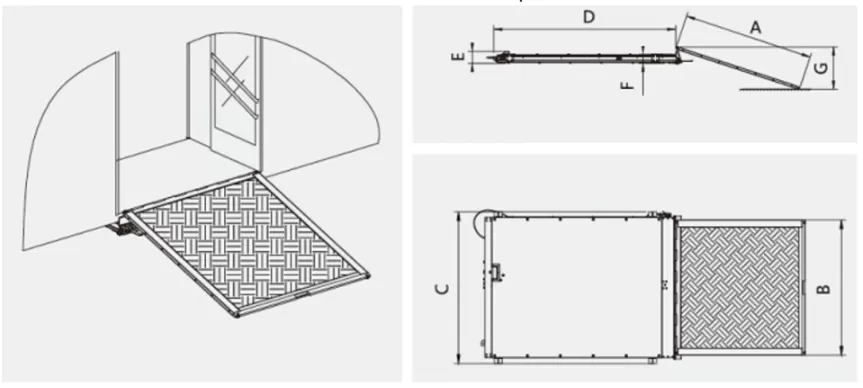

Parameters (unit:mm)

Modelplatform net length Aplatform net width Boverall width Coverall length Doverall thickness Fmounting thickness Fmax floor height G
EWR-L1-YG10271007113014289570350
EWR-L1-YT10271007113014089570350
EWR-L1-S10271007113014099570350
EWR-L7-S10271007113013899570350
