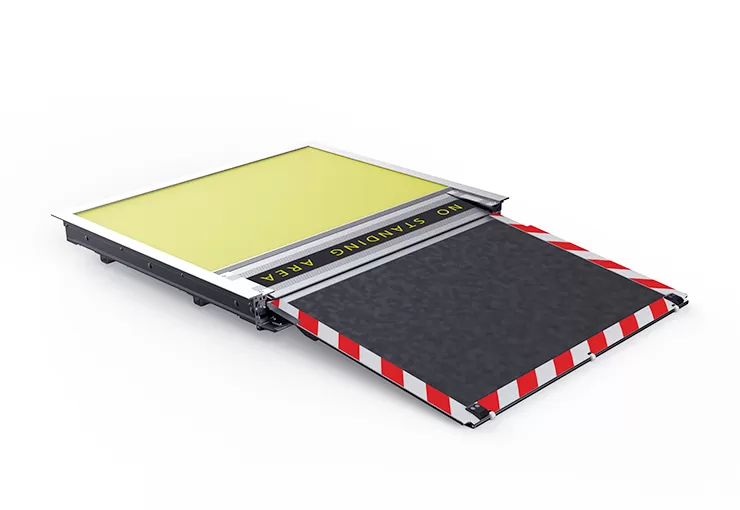

EWR-TD01 Electric Wheelchair Ramp

EWR-TD series electric wheelchair ramp is designed for city bus and BRT (Bus Rapid Transit) to help wheelchair occupant to enter vehicle comfortably and easily while seated in a wheelchair.

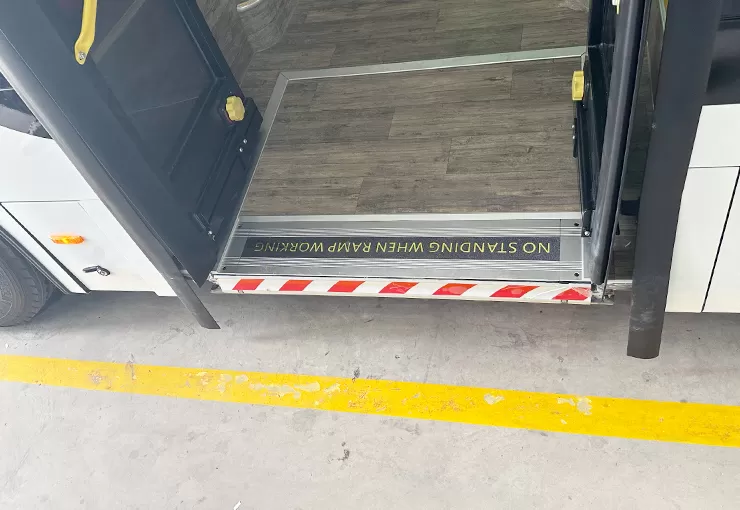

It is installed on bus floor and flat with floor after installed, so it doesn't obstruct view, access and emergency exit.
It is driven by motor and controlled by switch.
Main material is aluminum, which has high corrosion resistance.

Consult Now

model	platform net length A	platform net width B	gross length C	gross width D	thickness E	height from vehicle floor to station F	distance between vehicle and station G
EWR-TD01-1	850	888	884	1017	84	≤370	250-610
EWR-TD01-2	550	888	584	1017	84	≤370	250-310
