EWR-TD02 Electric Wheelchair Ramp

EWR-TD series electric wheelchair ramp is designed for city bus and BRT (Bus Rapid Transit) to help wheelchair occupant to enter vehicle comfortably and easily while seated in a wheelchair.
It is installed on bus floor and flat with floor after installed, so it doesn't obstruct view, access and emergency exit.
It is driven by motor and controlled by switch.
Main material is aluminum, which has high corrosion resistance.

Safety Certification

Consult Now

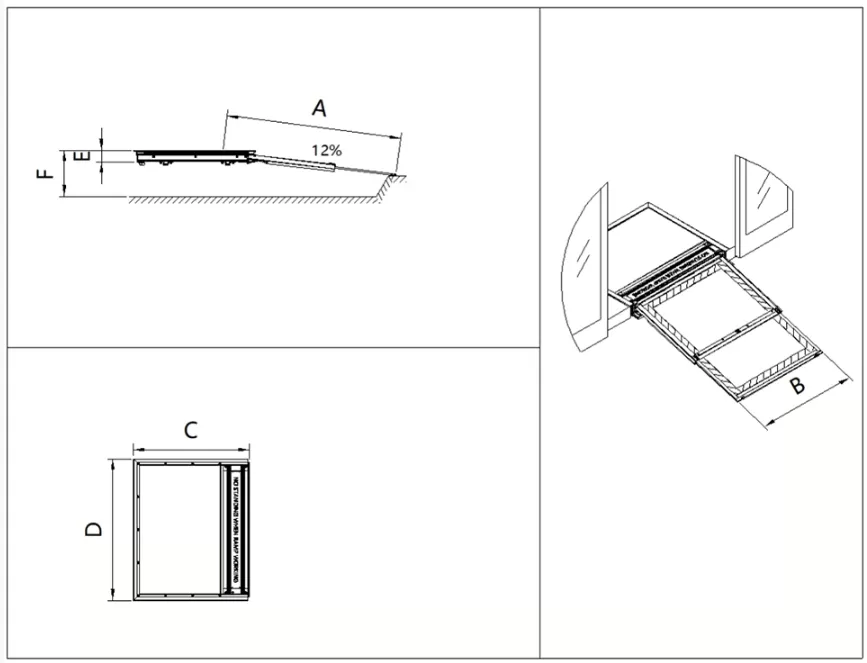

model	platform net length A	platform net width B	gross length C	gross width D	thickness E	vehicle floor height F

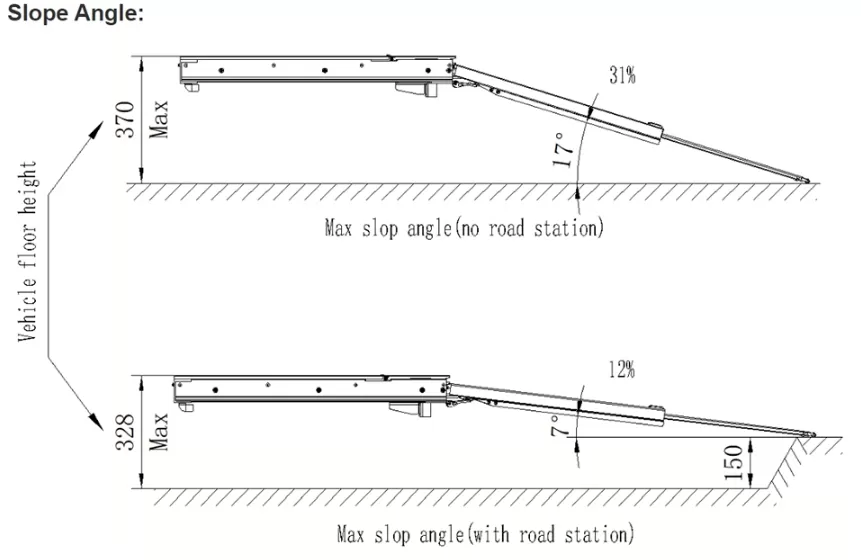

EWR-TD02-1	1063-1072	867	834	1017	84	≤370
