Vehicle Accessibility Facilities
Vehicle Accessibility Facilities

Seat Lift for Bus and Coach

  • This passenger seat lift has opened up a new welfare field in the market.

  • At present, traditional wheelchair lifts are mostly installed on passenger cars, mainly for wheelchair users. For vehicles, it is necessary to reserve enough wheelchair storage area. The number of seats in the vehicle will be reduced by 4 to 6. When there are no wheelchair passengers, this area is idle and wastes the use of the vehicle.

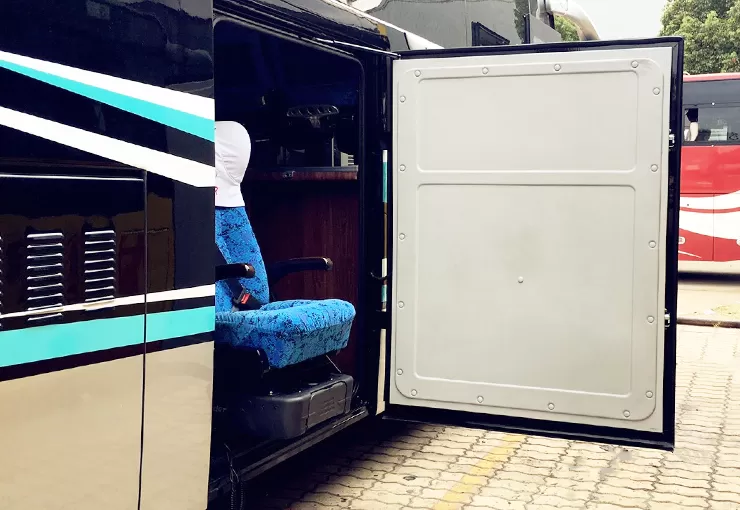

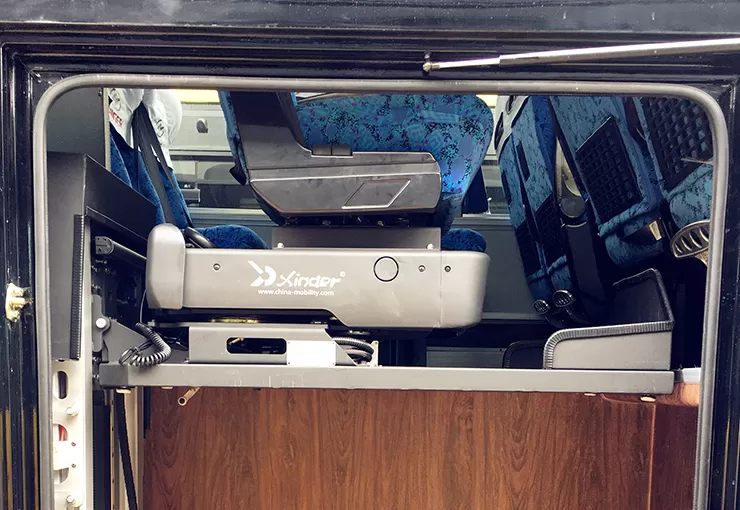

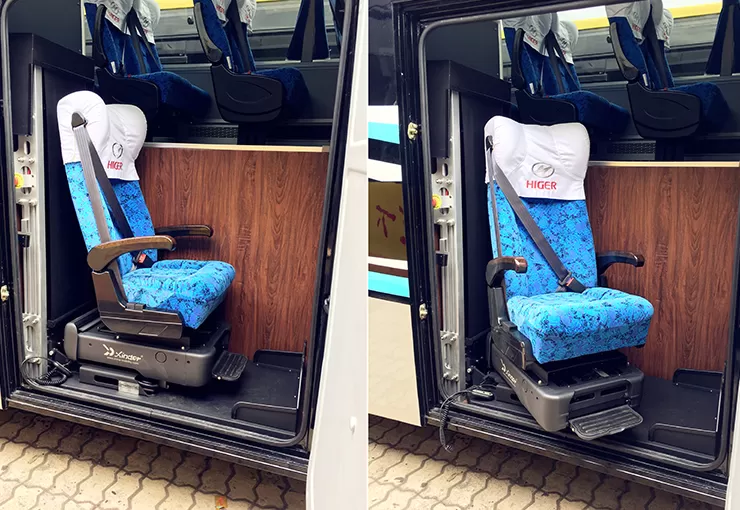

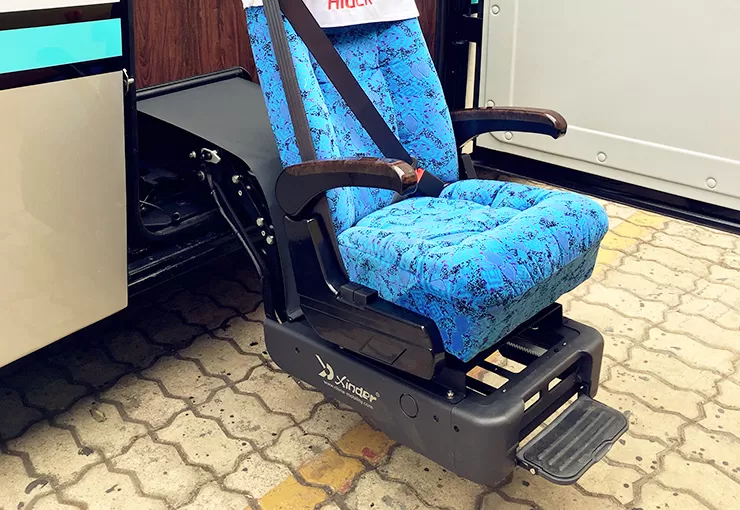

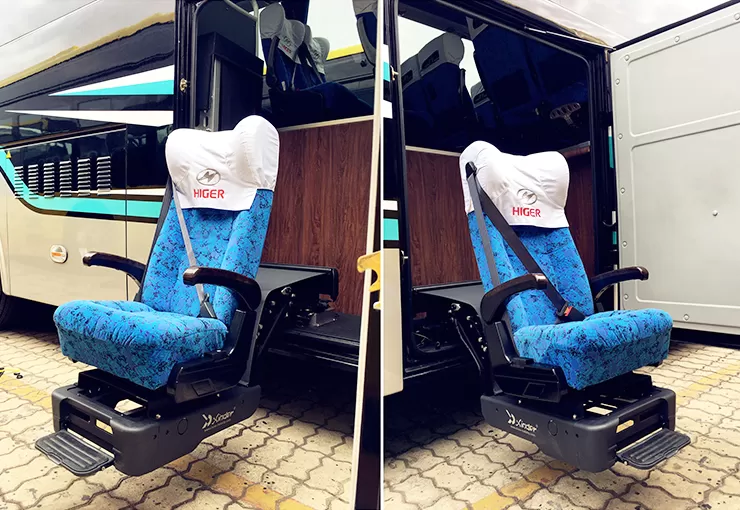

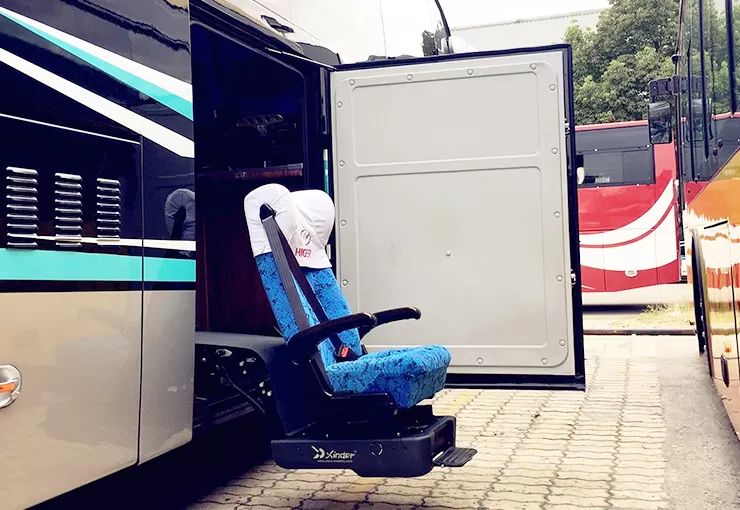

  • To solve this problem, we have developed a seat lift for coach. The seat can be lowered, rotated out, and lowered again to a position close to the ground. Passengers can sit on the seat outside the coach, and then this seat lift can smoothly lift and rotate the passenger into the cabin and raise to the floor surface of coach.

  • After supporting this product, it is not necessary to reserve wheelchair space on the vehicle, and also can maintain the same number of vehicle seats.

  • This seat lift can rotate clockwise or counter clockwise.

  • It is controlled by wired remote control.

Safety Certification
Safety Certification
Consult Now
Product Details
Technical Parameter
  • Manual function for emergency;

  • Interlock function;

  • Warning during working;

  • Can use original passenger seat and safety belt;

  • Stop working if obstacle.

TECHNICALS:

VoltageDC 24V
Power250W
Loading capacity150kg
Lowering height395mm (after rotate out)
Operating current≤25A
