SLIFT Plus Detachable Swivel Seat

Name: SLIFT Plus Detachable Swivel Seat
Brand: Xinder-Tech Electronics Co., Ltd.

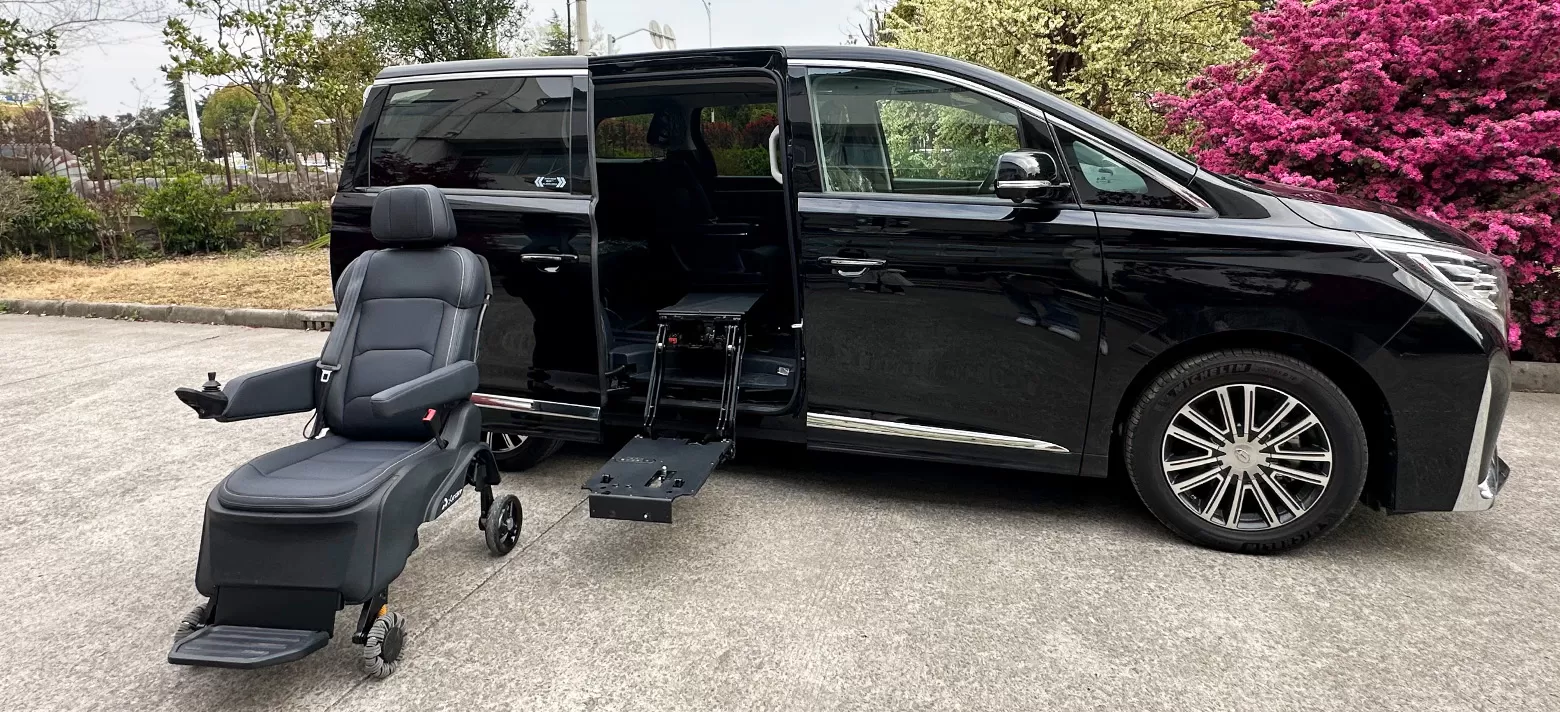

The seat can be separated from the vehicle and converted for wheelchair use when it is swung out of the vehicle and landed on the ground.

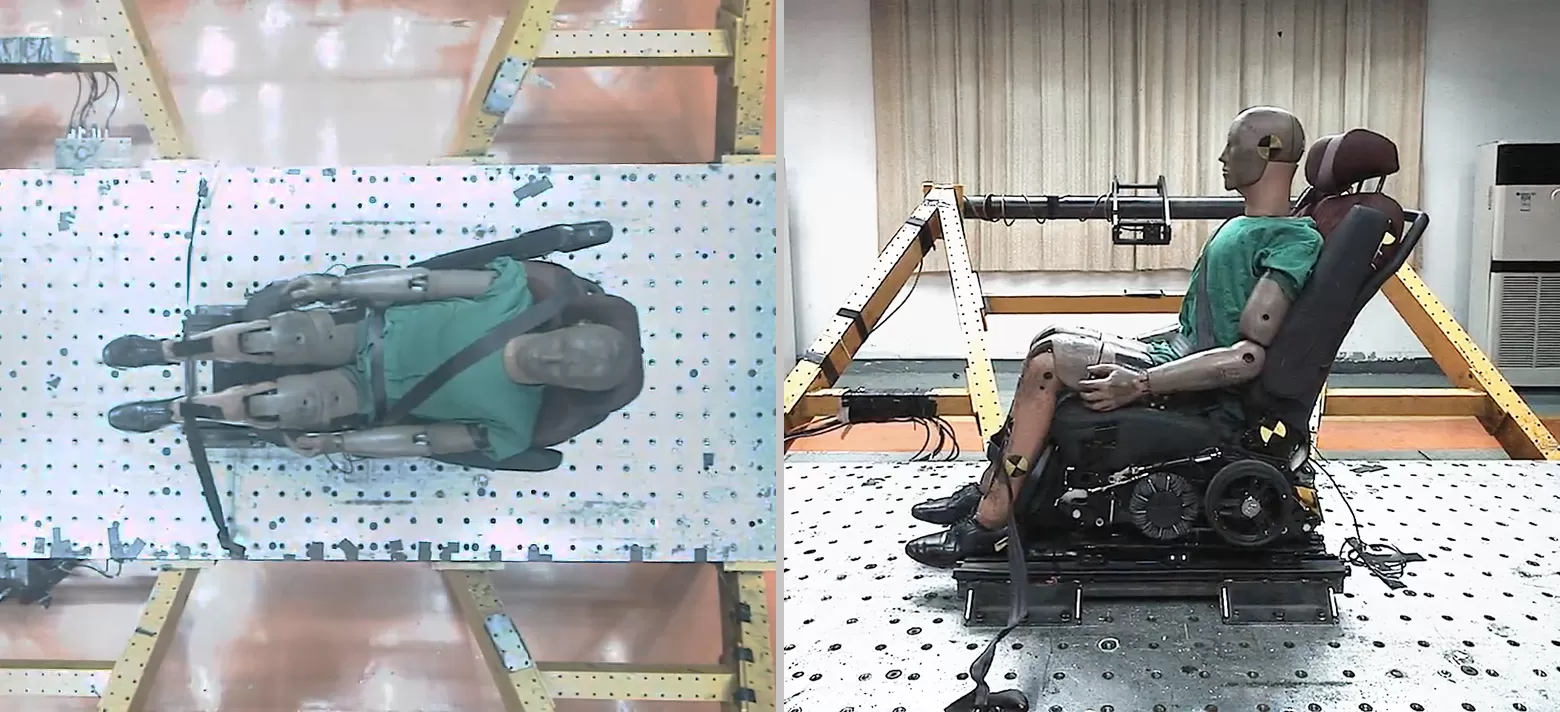

Safety Certification

Mobile App Control

Consult Now  APP Download

Technical Parameter

Product Details

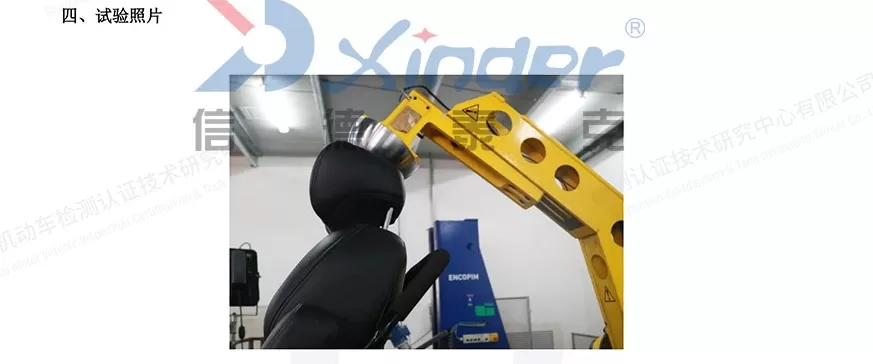

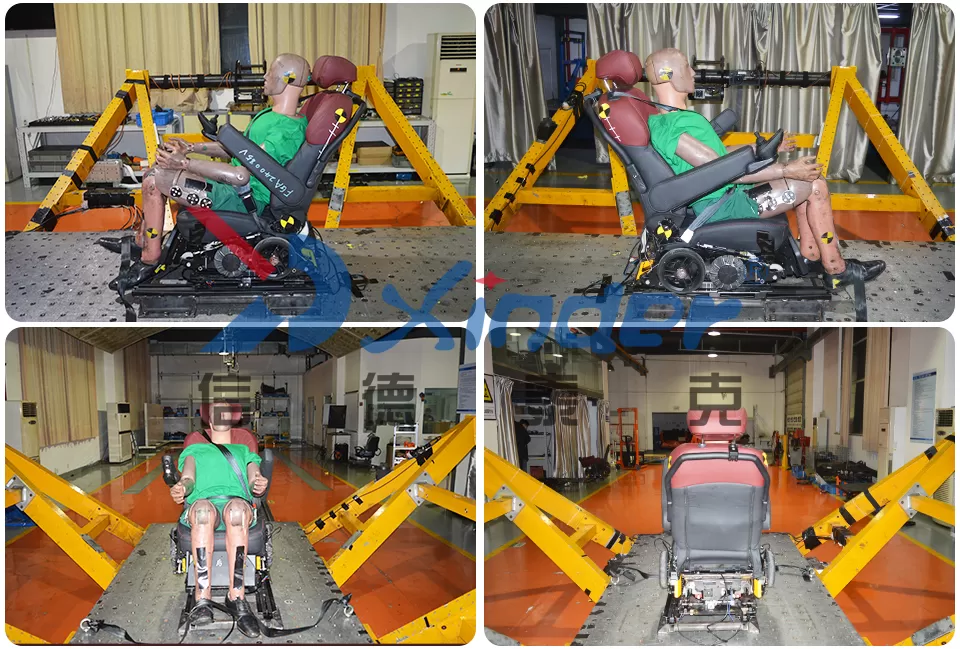

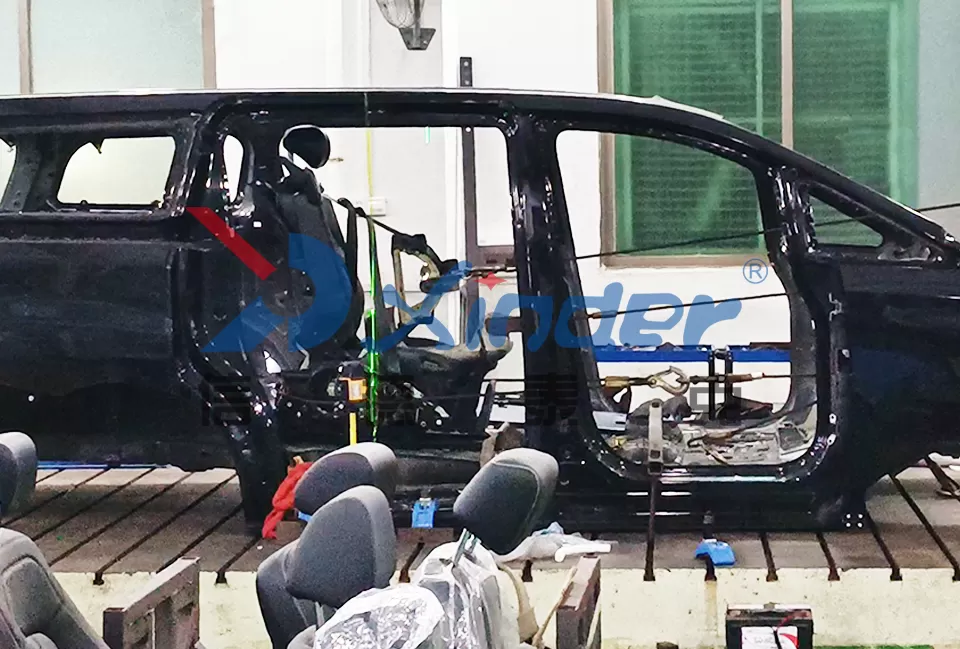

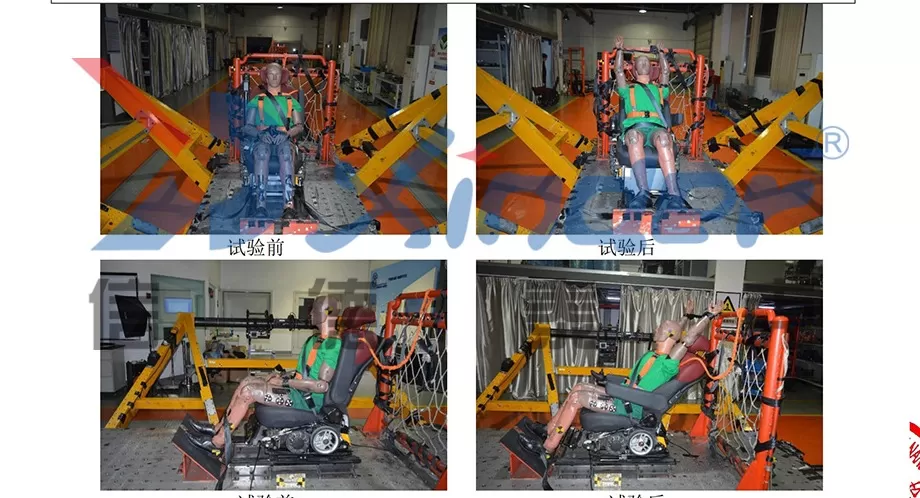

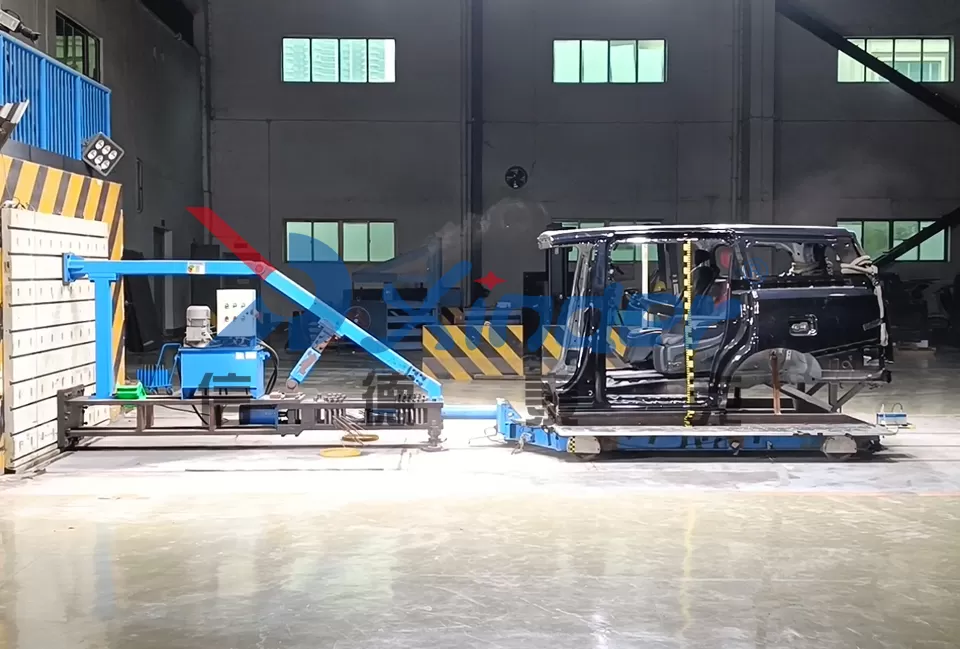

Test Certification

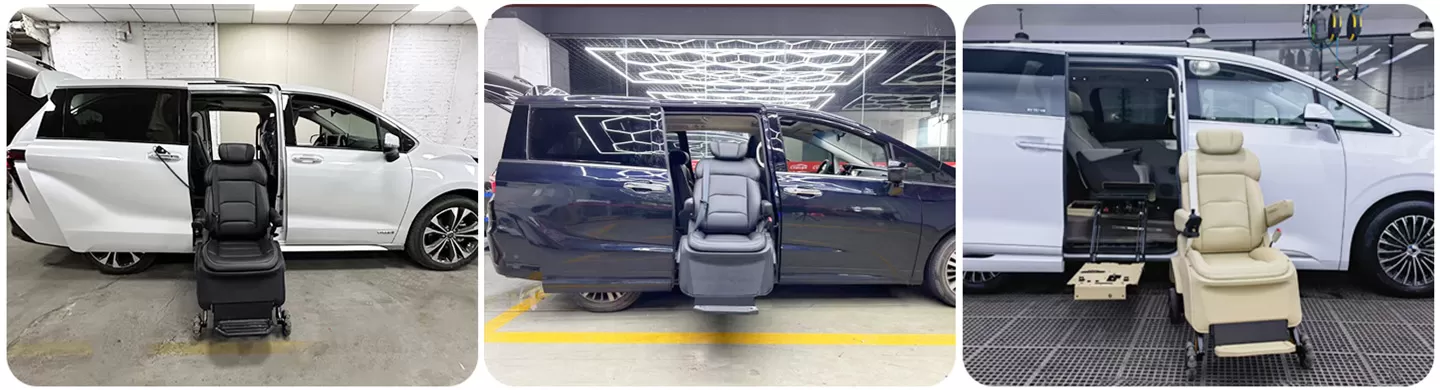

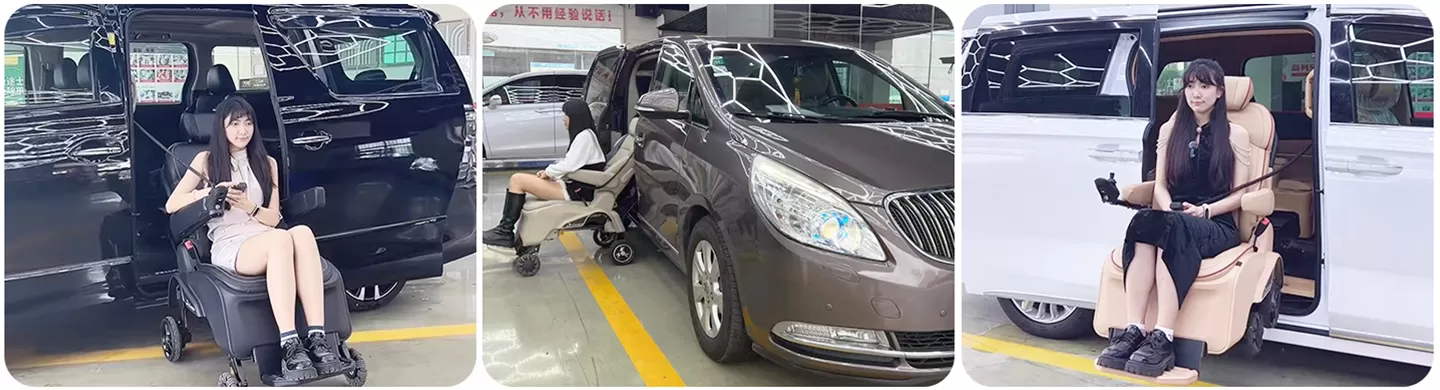

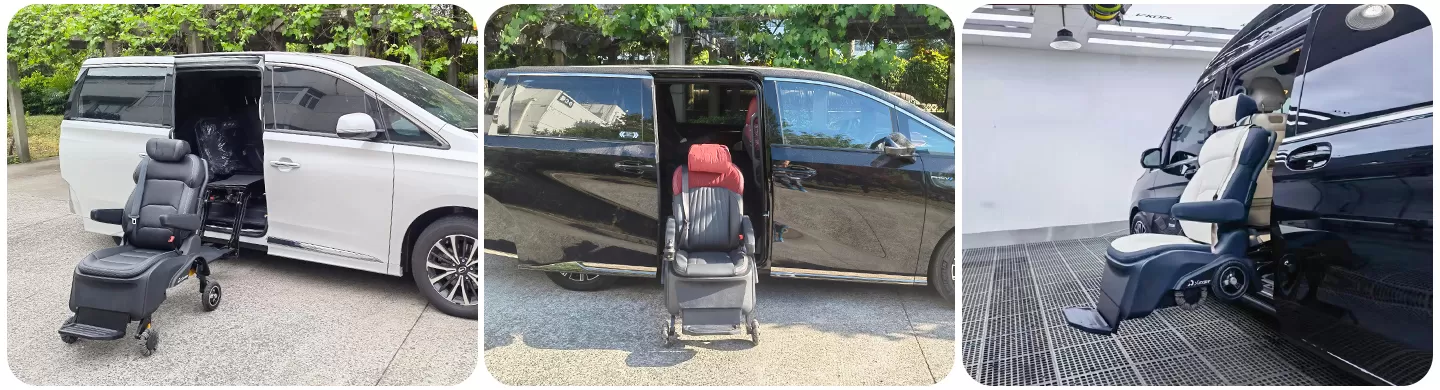

Retrofit Case

SLIFT Plus Detachable Swivel Seat

TECHNICALS:

Volt of Mechanism	12Vdc
Volt of Electric Wheelchair	24Vdc
Power	120W
Loading Capacity	150Kg
Lower Height	400mm
Rotating Angle	0~90°
Recharge Milage	25Km

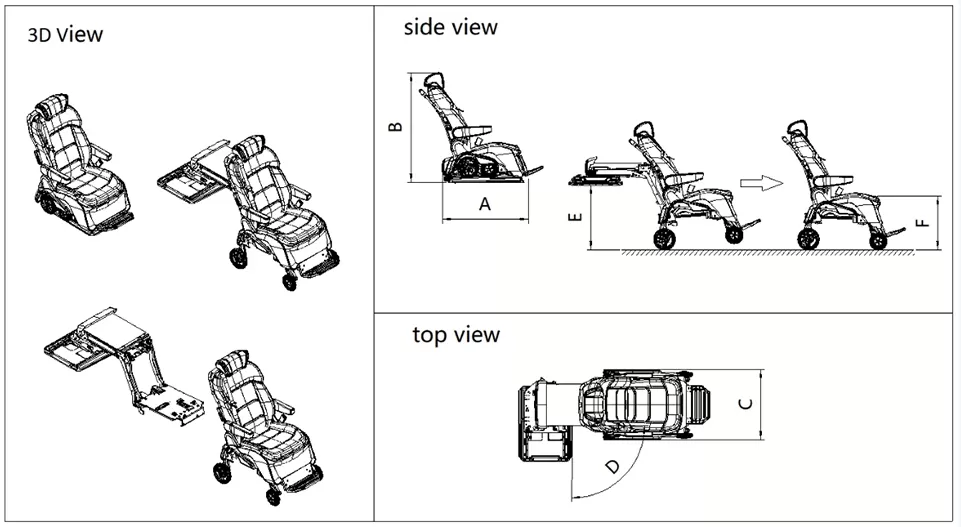

Parameters (unit:mm)

Model	wheelchair	gross length A	gross height B	gross width C	rotating angle D	floor height E	height of wheelchair F
SLIFT PIus+	electric	800	1020	640	0-90°	≤540	500
SLIFT PIus	manual	800	1020	640	0-90°	≤540	500

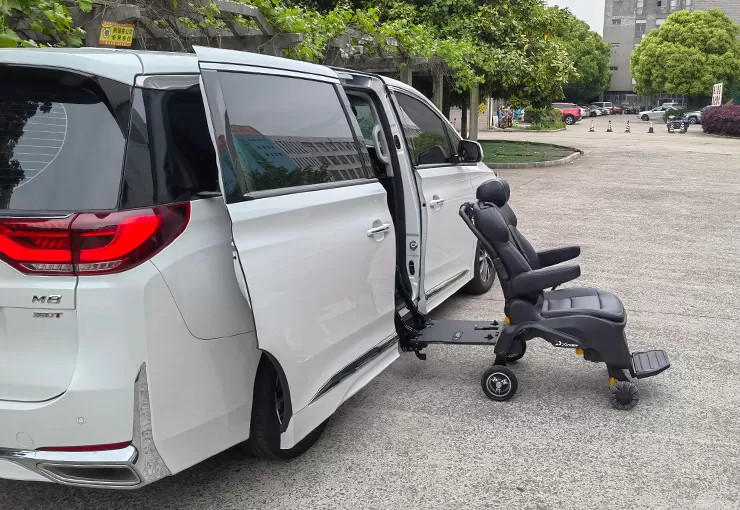

SLIFT Plus series swivel seat is a detachable welfare seat which installed in the middle row of MPV (applicable to commercial vehicles with sliding doors). Replacing the original car seat, this seat swivels out of the vehicle and lowers in height.

Compared with the SLIFT Pro series swivel seat, It is a kind of releasable swivel seat. The seat can be released from the mechanism, and the user does not need to transfer or move to other wheelchairs or equipment through the docking device. After the seat released, it can be used directly as a wheelchair, which can save the cumbersome operations and time waste caused by the secondary transfer.

SLIFT Plus series swivel seat makes travel more accessible for the elderly and people with disabilities.

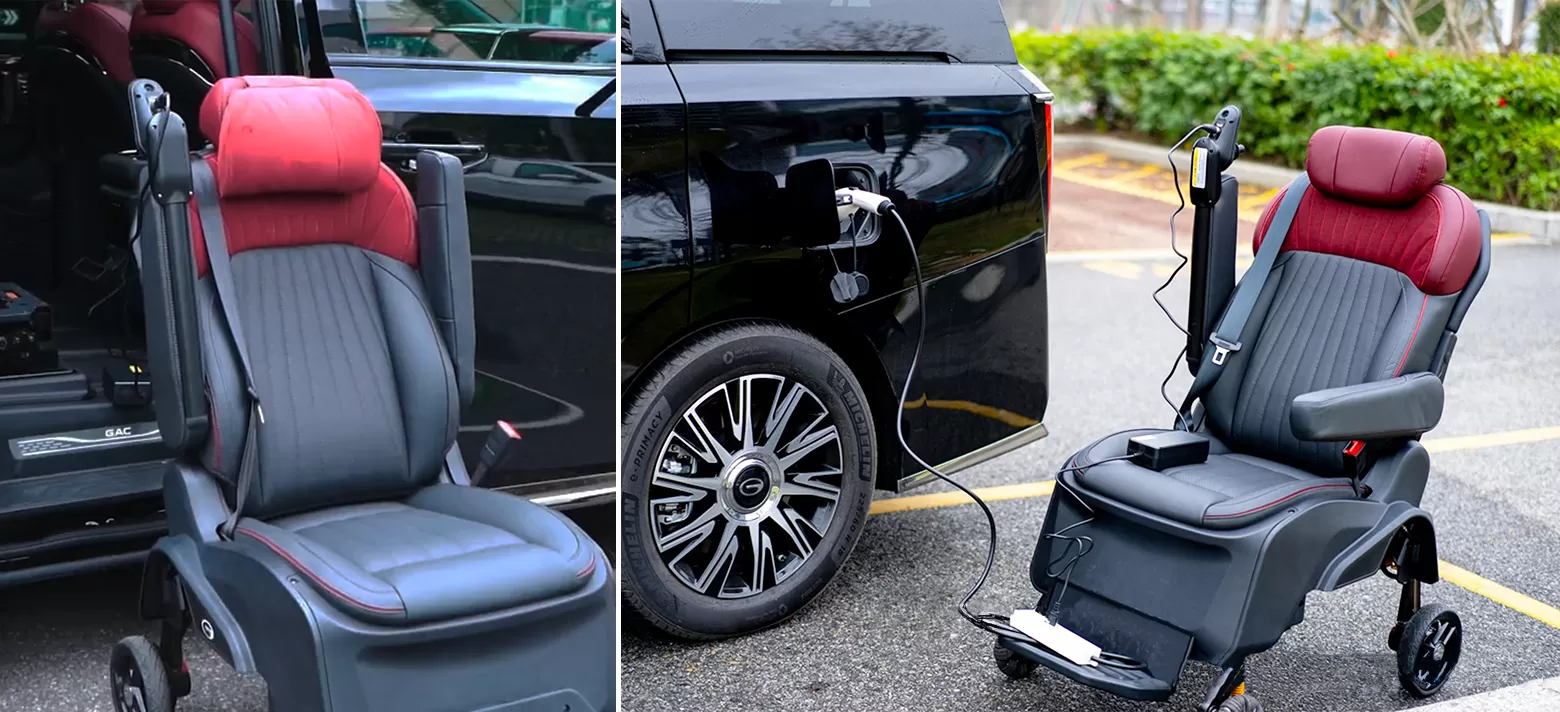

The released wheelchair has manual one and electric one for option.

SLIFT Plus Detachable Swivel Seat Functional Features

Program function :The path can be preprogramed by remote control including programing the movement of lengthwise, rotation and seat back adjustment.
Position memory function：The seat can memorize customer’s favorite position and when the seat swiveled in, it can directly go back to this favorite position.
Program copy and backup without computer: The customer can use the remote controller to backup or copy the program to other seats themselves without the help of the computer or service engineer.
Obstacle protection function: the seat automatically learns and sets the current protection of each motor by measuring the load size. It automatically stops when encountering obstacles and displays various information on the display;
Electrical Manual Mode：The customer can bypass the program and operate the motor separately by Electrical Manual mode for emergency situation.
Door Interlock: The seat will check the door status and disable the swivel out function when door is closed.

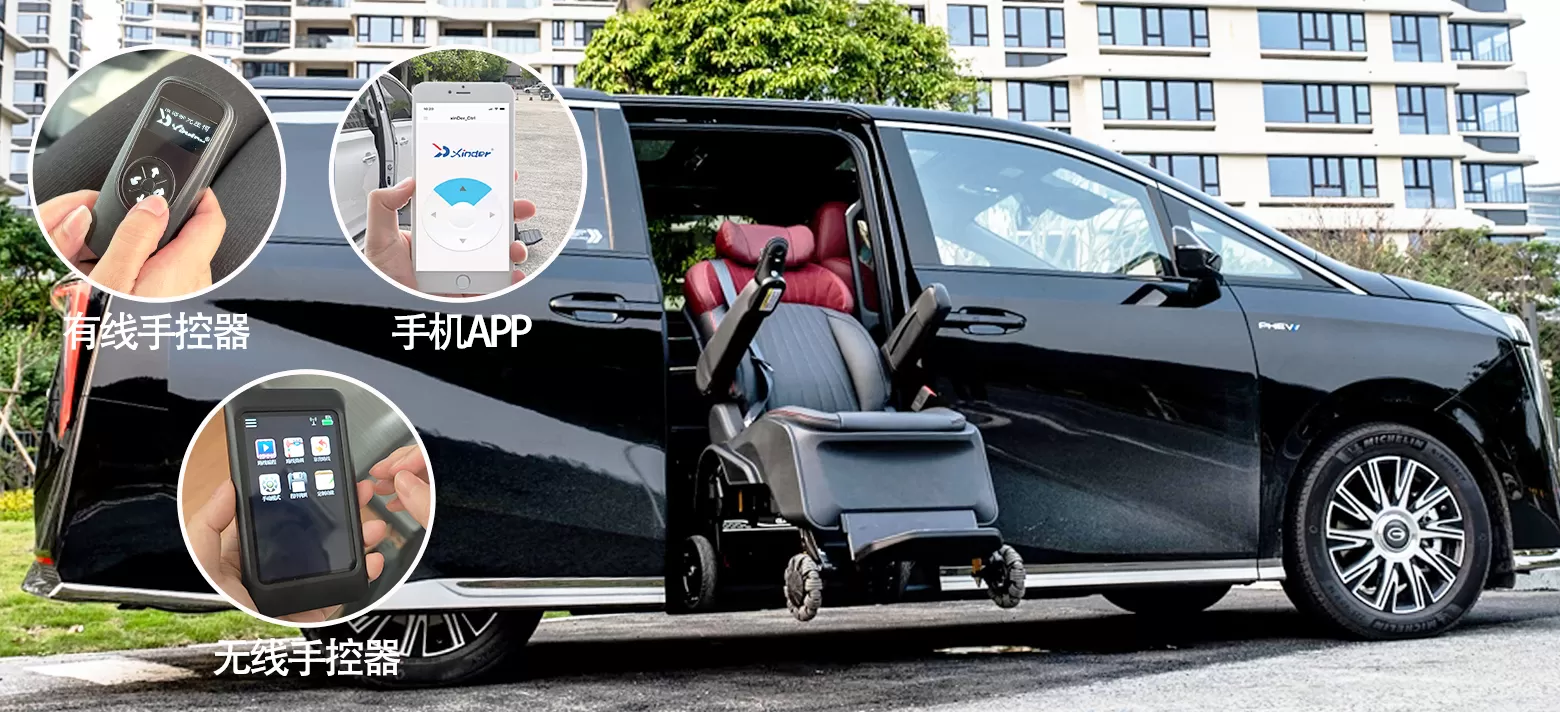

Control by cellphone：The seat can be connected to cellphone by Bluetooth and controlled by APP.
Manual function for emergency;
Footrest is automatically lowered after rotated out of vehicle;
Patent product；
