manual emergency function;
door interlock function;
programmable by the wired remote control;
auto sleep mode;
can be controlled by wired remote control, switches on seat or your mobile phone;
Pass E-MARK test and R17 crash test;
Turning direction: clockwise or anti-clockwise;
low static power consumption, quiescent current is less than 0.2mA.
Technical Function
Voltage | 12Vdc |
Power | 120w |
Loading Capacity | 150kg |
Lowering Height | 350mm |
Rotating angle | 0-113 |

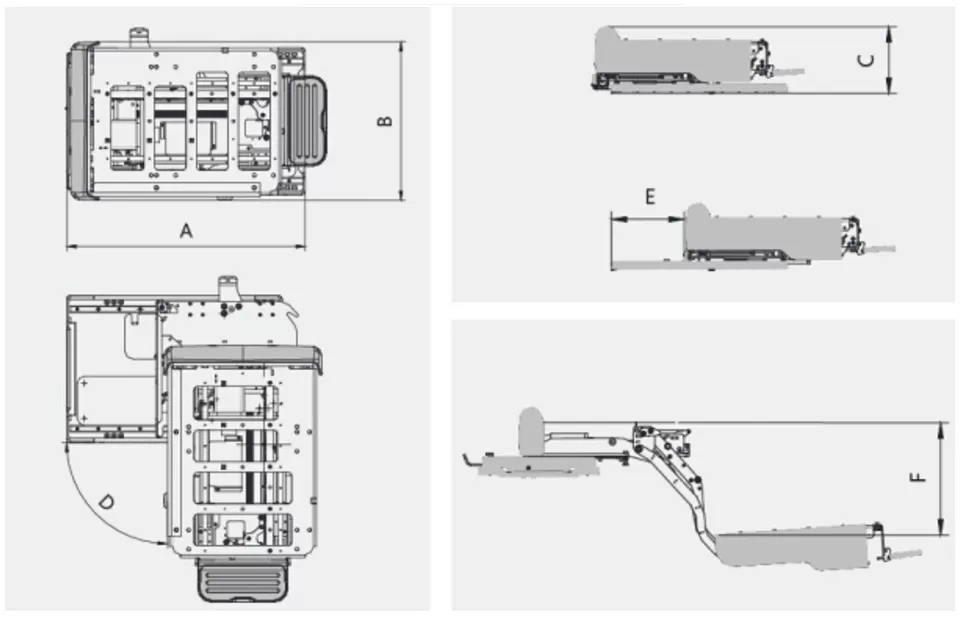

Parameters (unit:mm)
Model | gross length A | gross width B | thickness C | turning angle D | forward stroke E | max lowering height F | turning direction |
SLIFT-R Pro 660 | 660 | 455 | 235 | 0-113° | 300 | 350 | clockwise |
SLIFT-L Pro 660 | 660 | 455 | 235 | 0-113° | 300 | 350 | anti-clockwise |

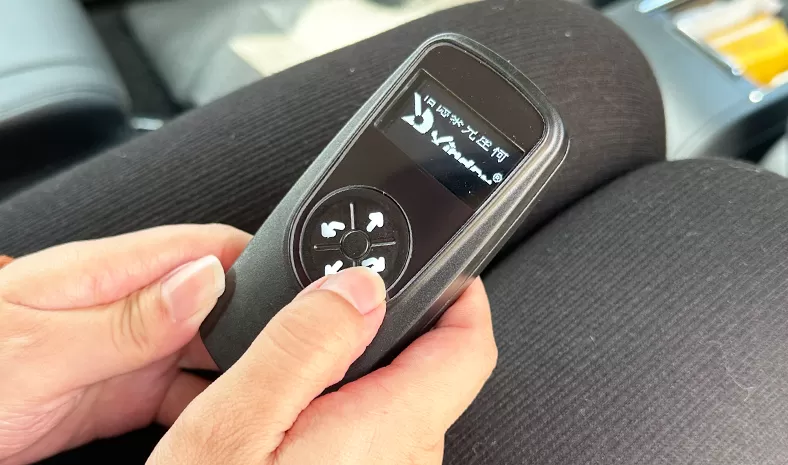

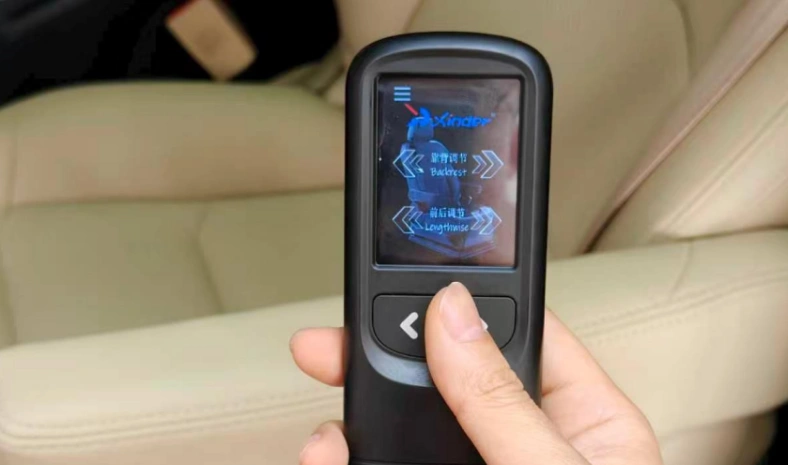

1.54-inch display, one-piece keypad, lighted indicator arrows

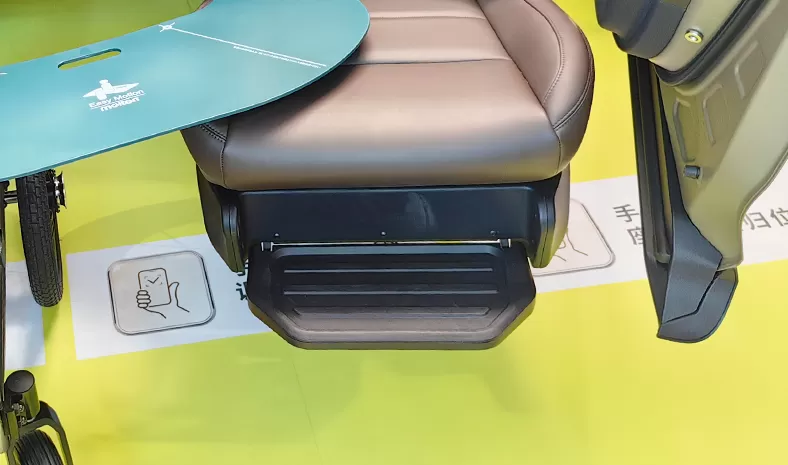

360*180mm area, comfortable to step on

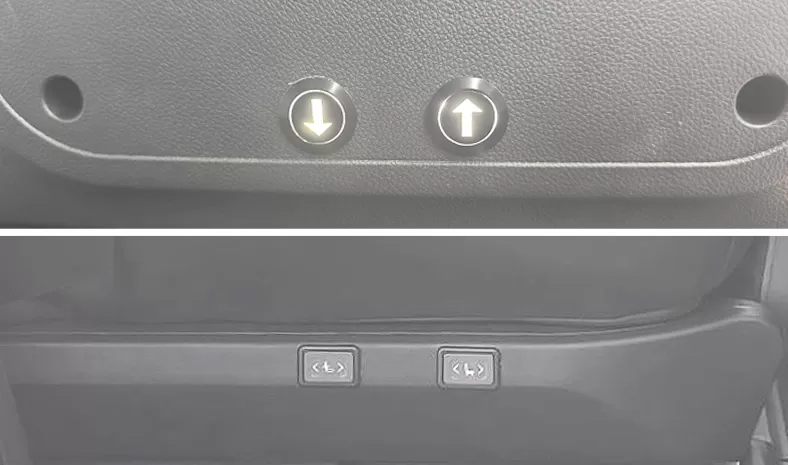

Added side control switches and rear emergency switch
