manual emergency function;
door interlock function;
programmable by the wired remote control;
auto sleep mode;
can be controlled by wired remote control or your mobile phone;
Pass EMC R10 test and crash test;
Turning direction: clockwise or anti-clockwise;
low static power consumption, quiescent current is less than 0.2mA.
Technical Function:
Voltage | 12Vdc |
Power | 30w |
Loading Capacity | 150kg |
Rotating angle | 0-113 |

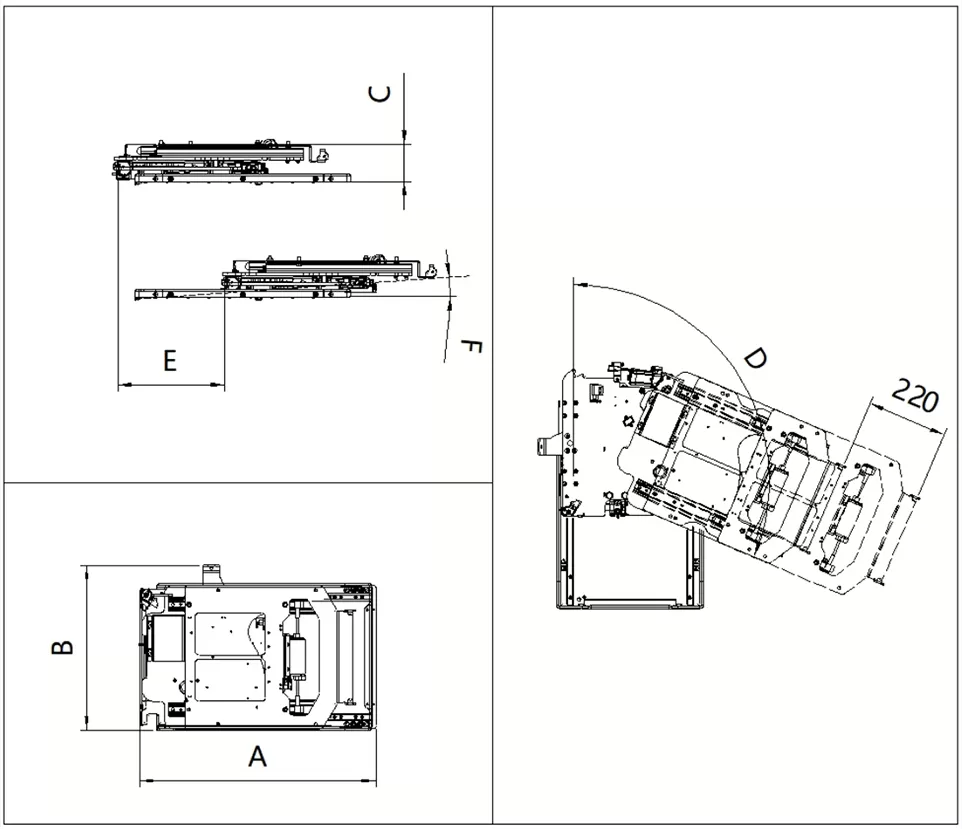

Parameters (unit:mm)
Model | gross length A | gross width B | thickness C | turning angle D | forward stroke E | forward stroke after rotated | mounting tilt angle F | turning direction |
SOUT-R Pro | 665 | 436 | 78 | 0-113° | 305 | 220 | 0-5° | clockwise |
SOUT-L Pro | 665 | 436 | 78 | 0-113° | 305 | 220 | 0-5° | anti-clockwise |
