STEP-B-1200 Wheelchair Lift (Semi-Automatic)

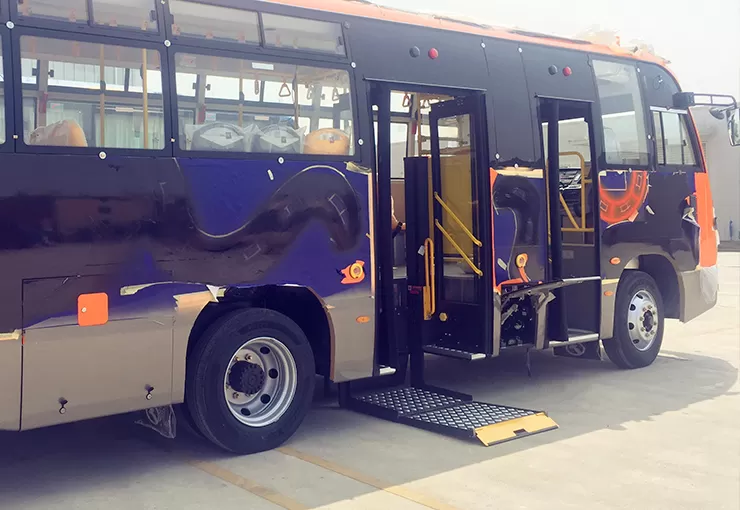

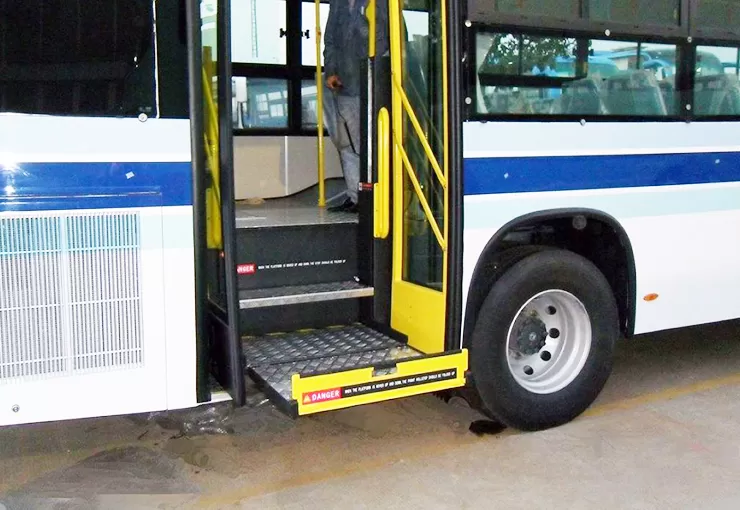

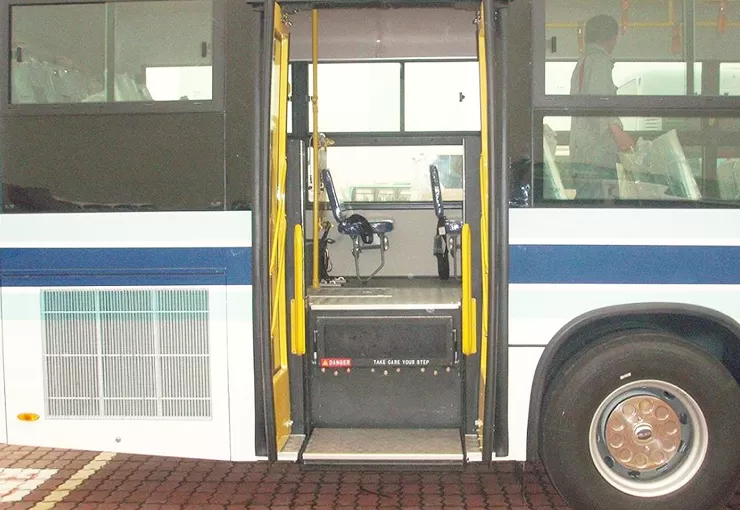

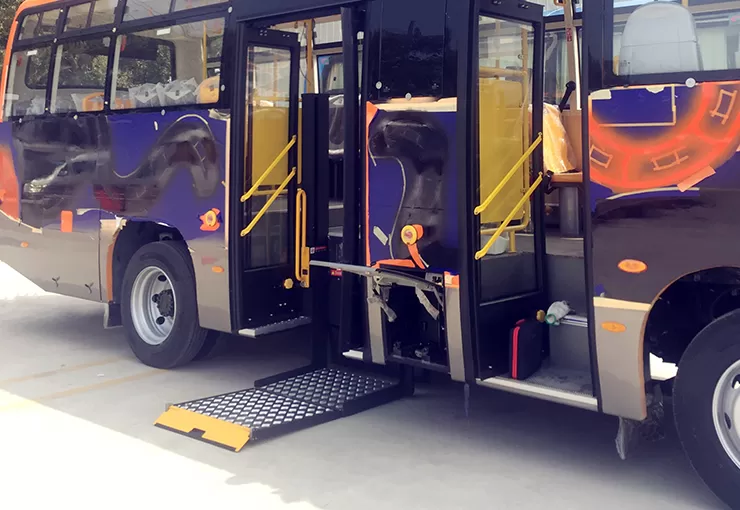

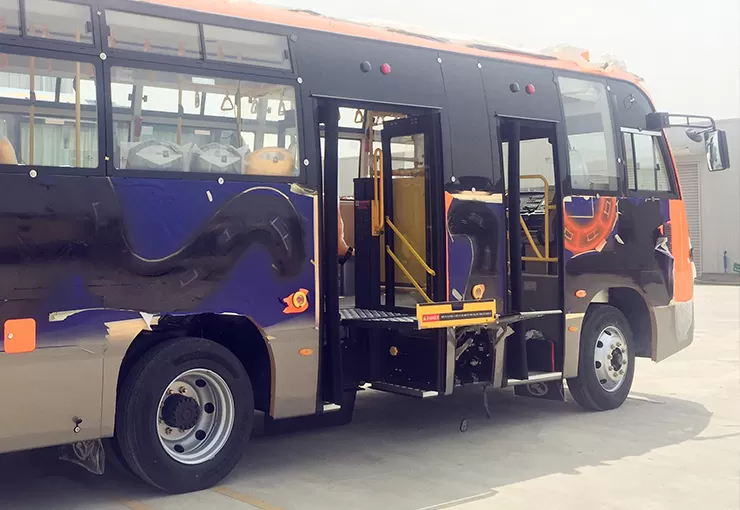

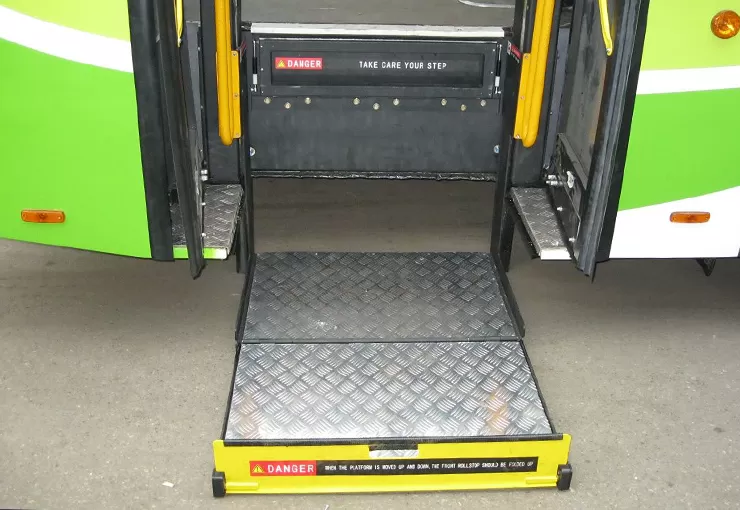

This wheelchair lift is installed in bus step area.
It can be used as bus steps when not in use.
It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.
It is a kind of semi-automatic wheelchair lift.
Open platform manually, but movements of lifting and lowering is automatic.
Max lifting height can reach 1150mm.

Safety Certification

Consult Now

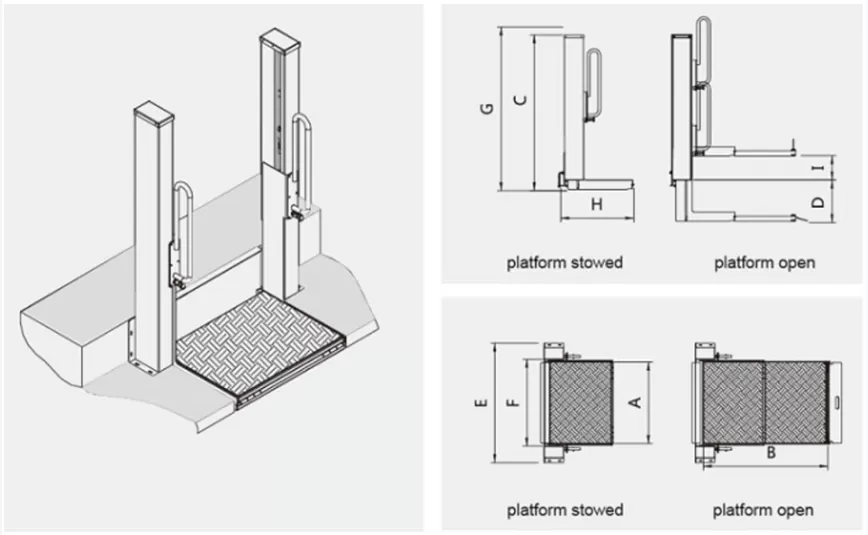

Model	platform net width A	platform net length B	lift gross height C	max down stroke D	lift gross width E	net door width F	net door height G	lift gross depth H	max up stroke l
STEP-B-1200	820	1200	1745	450	1166	≥1200	≥1800	730	700
