Used as bus steps when not in use;
Doesn't obstruct view, access and emergency exit when stowed;
Warning sound during working;
Manual backup function for emergency;
Door interlock function;
Anti-skid platform;
Powerful hydraulic pump ensures smooth and stable movement;
Side handrails to increase comfort and security;
CE and EMARK certified.
Technical Specifications:
Volatge | 12Vdc or 24Vdc |
Power | 800W |
Loading capacity | 300kg |

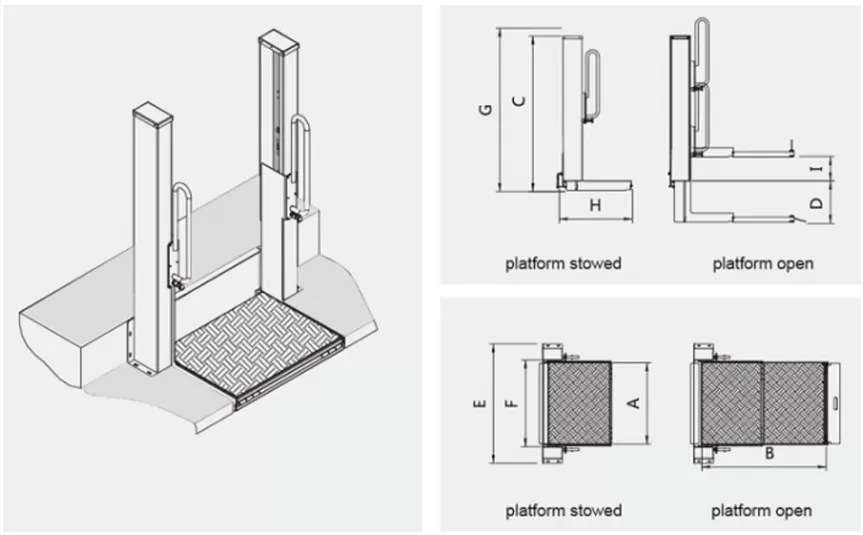

Parameters (unit:mm)
Model | platform net width A | platform net length B | lift gross height C | max down stroke D | lift gross width E | net door width F | net door height G | lift gross depth H | max up stroke l |
STEP-B-800 | 800 | 1200 | 1490 | 450 | 1166 | ≥1200 | ≥1550 | 730 | 400 |
STEP-B-1200 | 820 | 1200 | 1745 | 450 | 1166 | ≥1200 | ≥1800 | 730 | 700 |
