Stays out of sight and out of way when not in use;
Doesn't obstruct view, access and emergency exit when stowed;
Warning sound during working;
Manual backup function for emergency;
Door interlock function;
Inside safety locking device;
Mechanical automatic roll stops;
Anti-skid platform;
Powerful hydraulic pump ensures smooth and stable movement;
Side handrails (Option) to increase comfort and security.
Technical Specifications:
Volatge | 12Vdc or 24Vdc |
Power | 800W |
Loading capacity | 300kg |

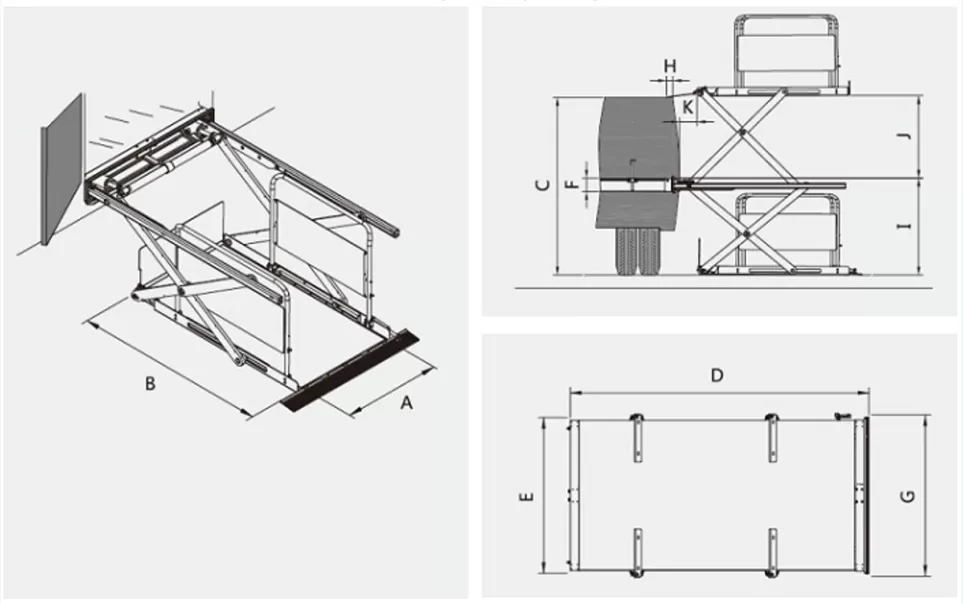

Parameters (unit:mm)
Model | platform net width A | platform net length B | platform net height C | gross length D | gross width E | mounting thickness F | door net width G | overlap size H | down stroke I | up stroke J | gap k |
UVL-700II | 750 | 1220 | 890 | 1896 | 1134 | 135 | ≥1100 | 50 | 200-570 | 250-320 | ≥50 |
UVL-700II-800 | 800 | 1220 | 890 | 1896 | 1184 | 135 | ≥1100 | 50 | 200-570 | 250-320 | ≥50 |
UVL-1300II | 750 | 1295 | 1455 | 1971 | 1134 | 135 | ≥1100 | 50 | 200-790 | 250-665 | ≥50 |
UVL-1300II-800 | 800 | 1295 | 1455 | 1971 | 1184 | 135 | ≥1100 | 50 | 200-790 | 250-665 | ≥50 |
UVL-1600II-H | 750 | 1445 | 1850 | 2168 | 1184 | 135 | ≥1100 | 50 | 200-910 | 400-940 | ≥50 |
