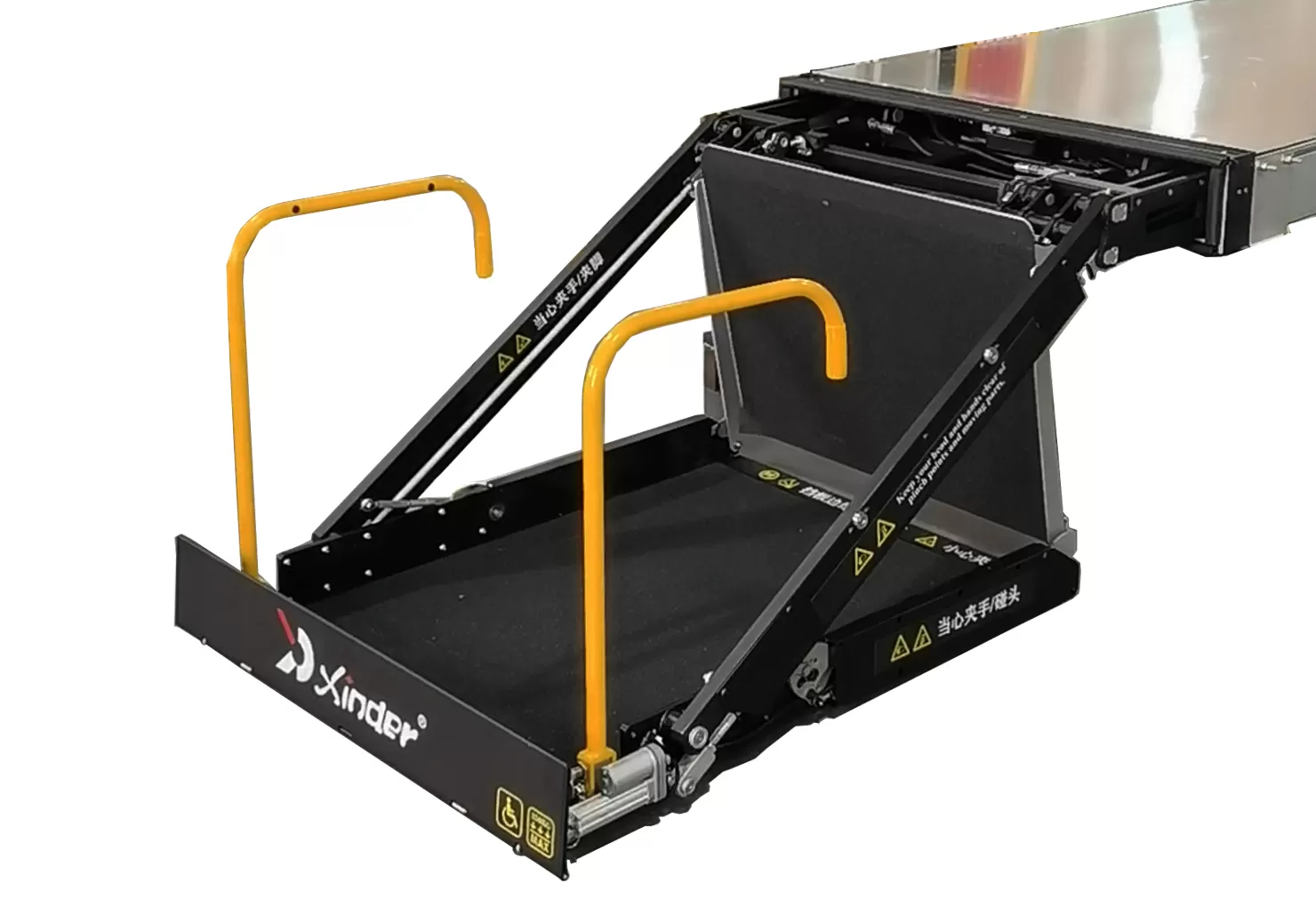

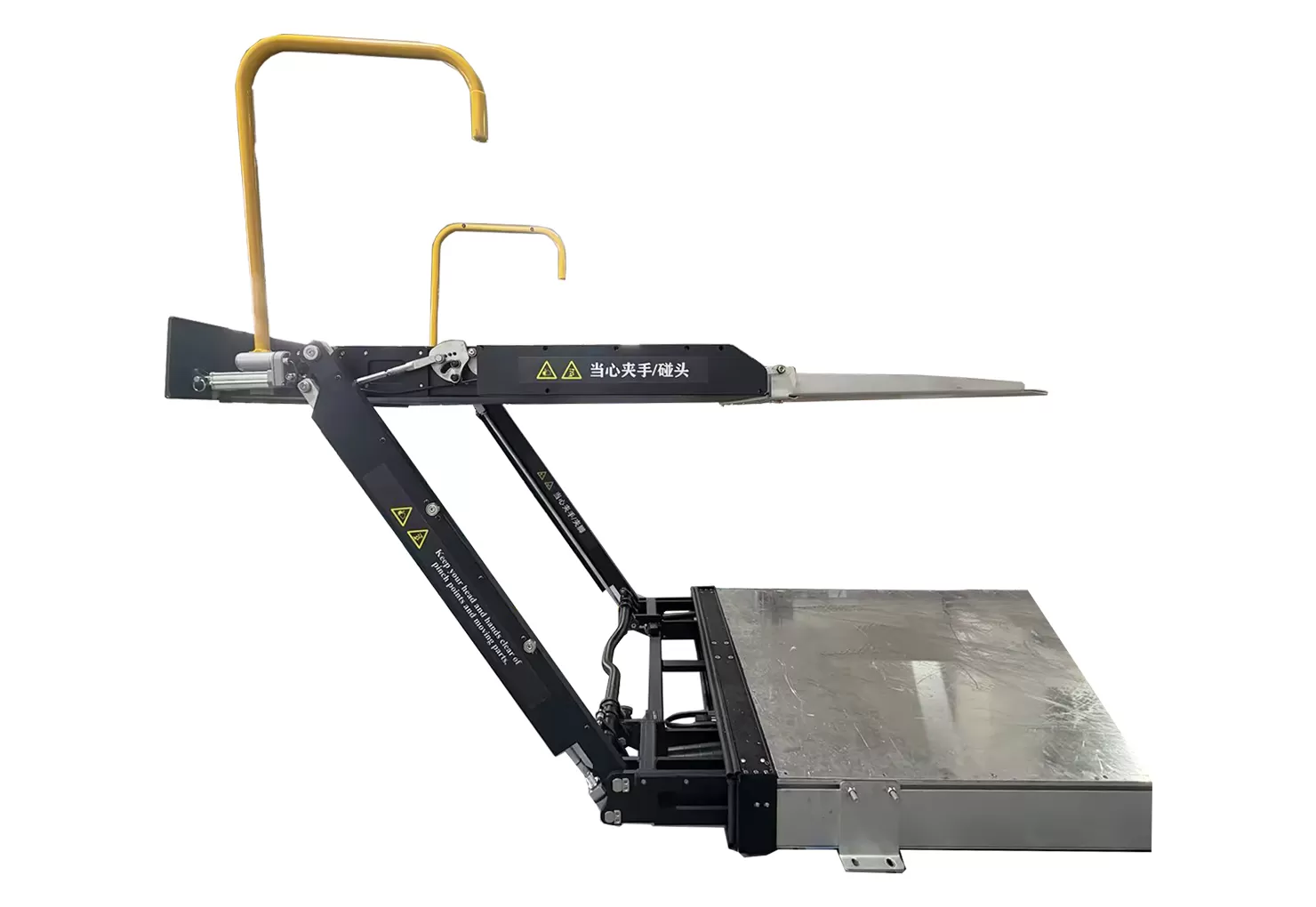

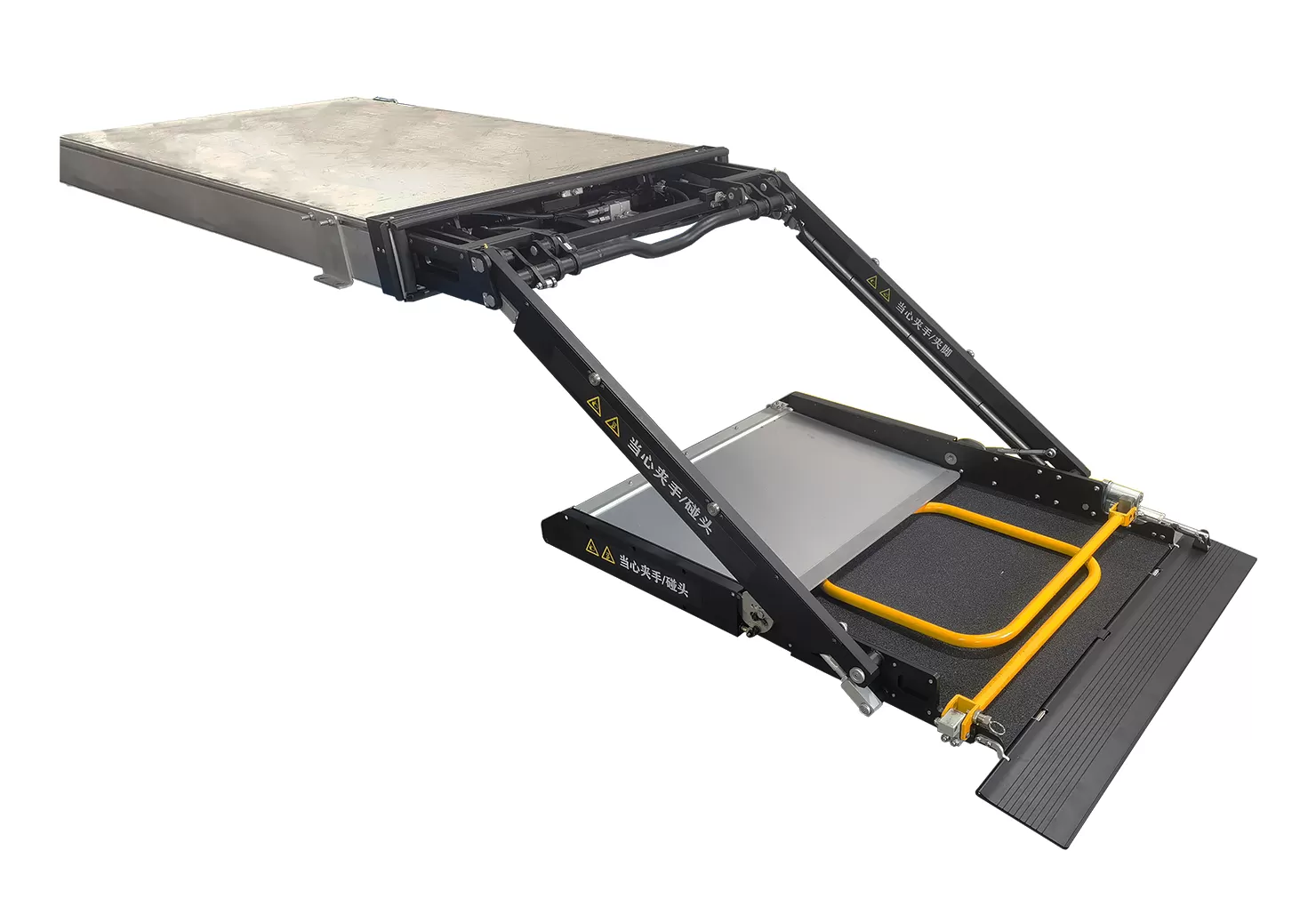

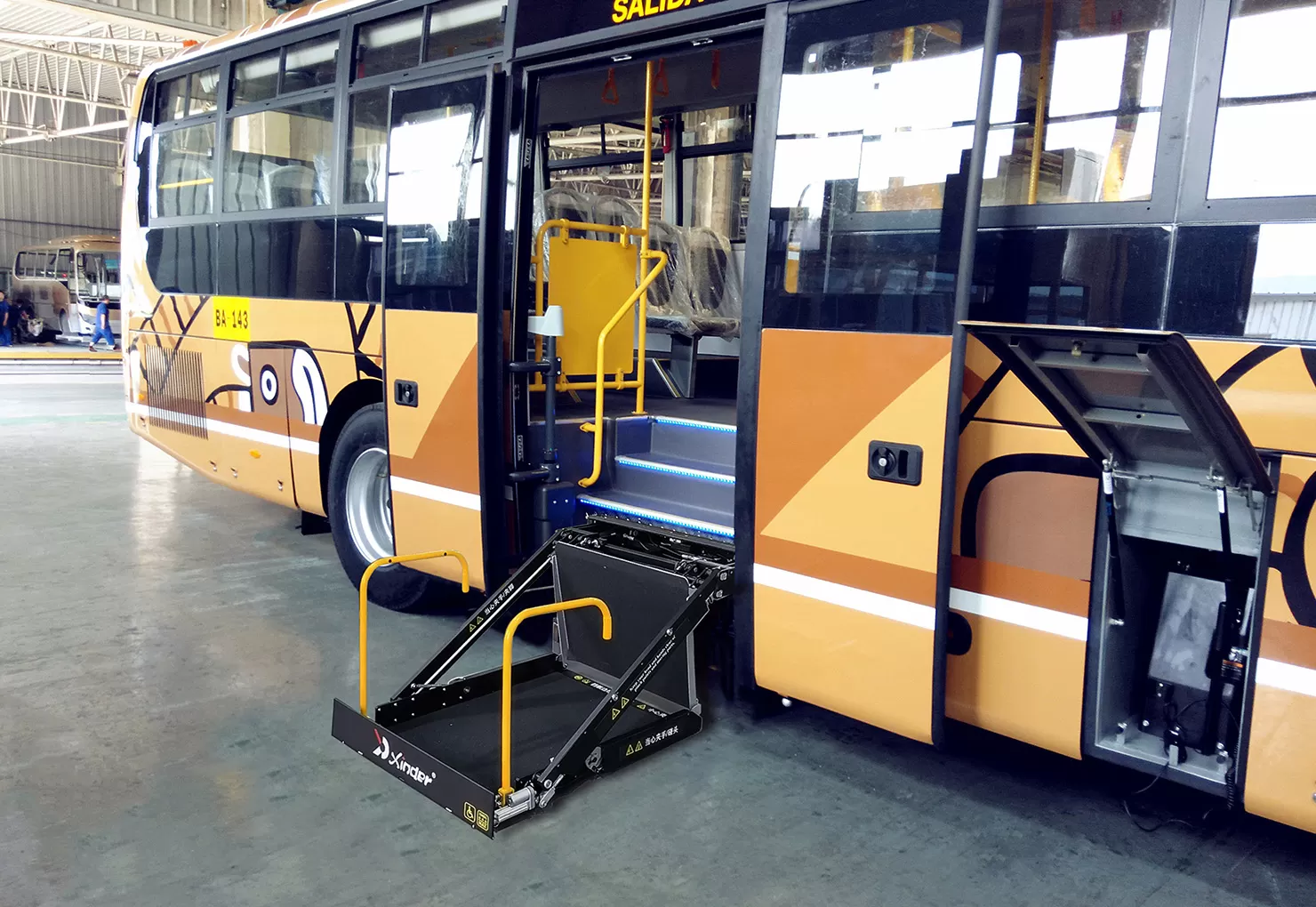

UVL-PA Wheelchair Lift (In Bus Step)

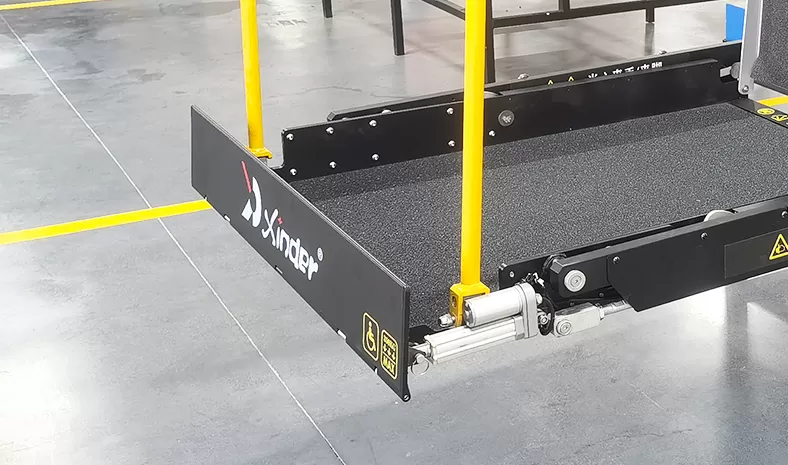

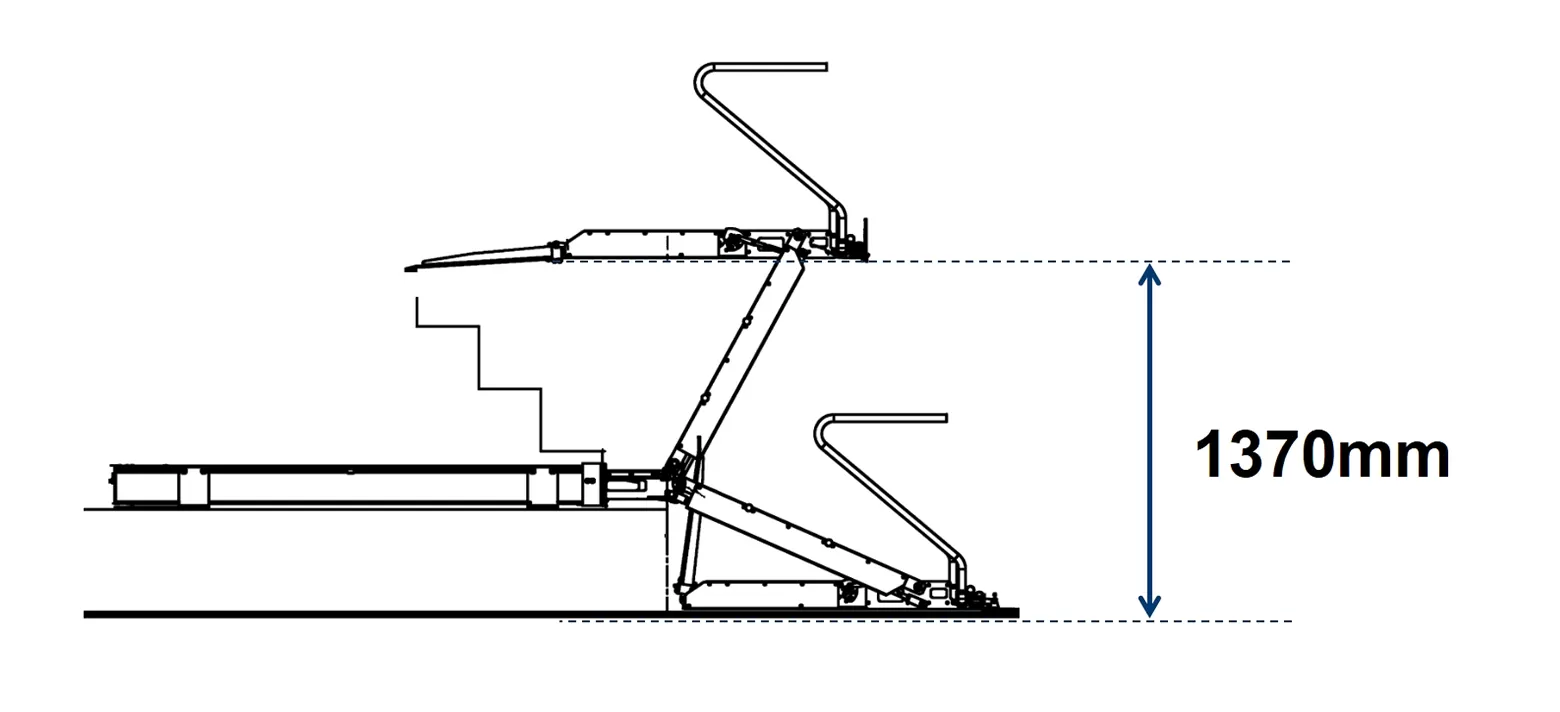

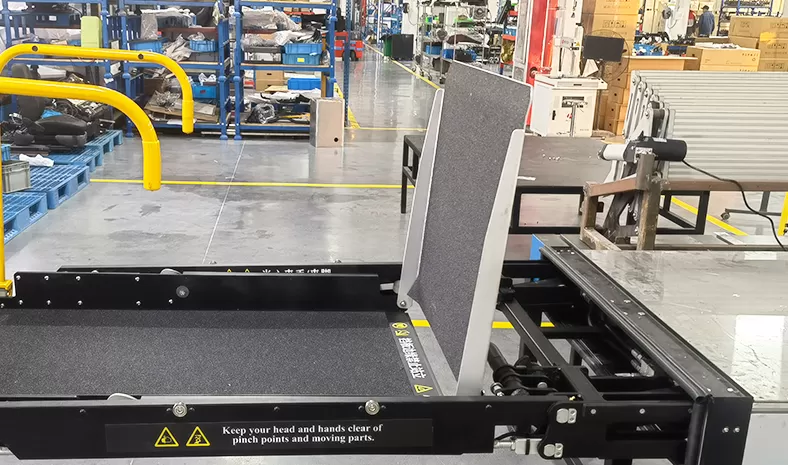

The lift is controlled by a handheld remote switch, with lights and sound alarms during operation. In case of insufficient power supply or electrical failure, the lift can be operated manually in an emergency. It features a non-slip platform and is equipped with mechanical automatic front and rear guards to ensure the safety of users during the lifting and lowering process. The lift has a maximum load capacity of 350 kg and a maximum lifting height of 1297 mm. It has been certified by the EU CE and EMARK.

• Durability: The horizontal in-and-out reciprocating operation count is ≥ 10,000 times, and the lifting test operation count is ≥ 10,000 times.

• Sound Alarm: A warning sound is emitted throughout the operation to alert nearby personnel.

• Manual Emergency Operation: In the event of power failure or malfunction, the lift can be manually retracted.

• Safety Locking: After the product is fully retracted, it is equipped with a hydraulic locking hook to prevent the mechanism from being thrown out during sharp turns.

• Circuit Protection: The product’s circuit is protected from damage in cases of motor short circuit or reverse power connection.

• Overload Protection: The lifting device cannot lift objects heavier than 375 kg from the ground.

• Low Power Consumption: The current equivalent value during the sleep/static phase is < 0.2 mA, reducing battery consumption.

• Water and Dust Resistance: IP67 rated, and it undergoes a water immersion test at a depth of 500 mm. After leaving the water source, the product can operate normally.
