Vehicle Accessibility Facilities
Vehicle Accessibility Facilities

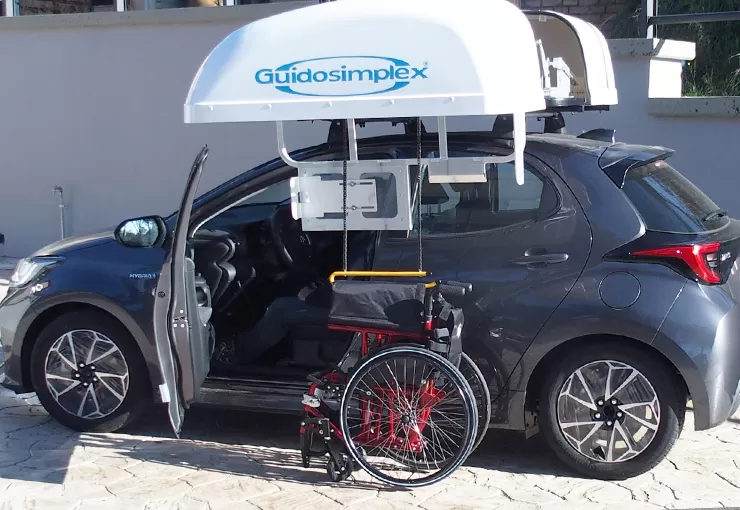

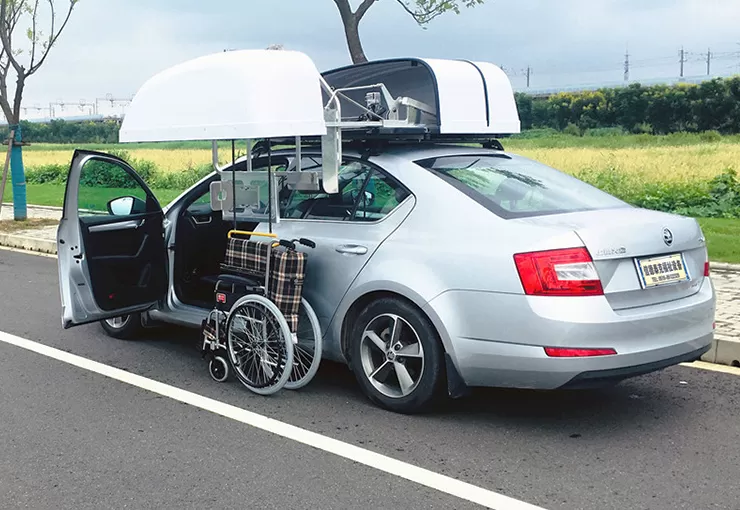

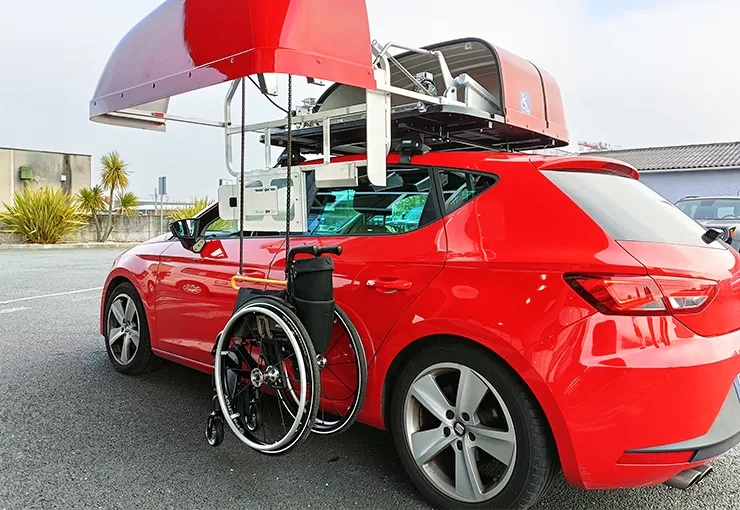

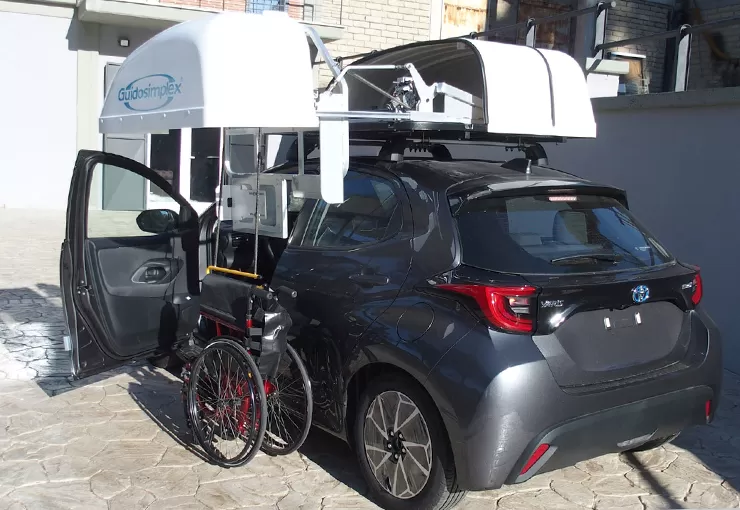

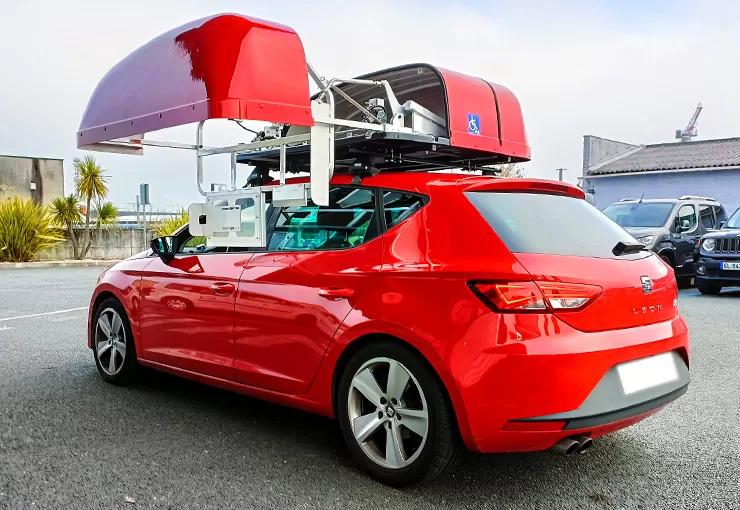

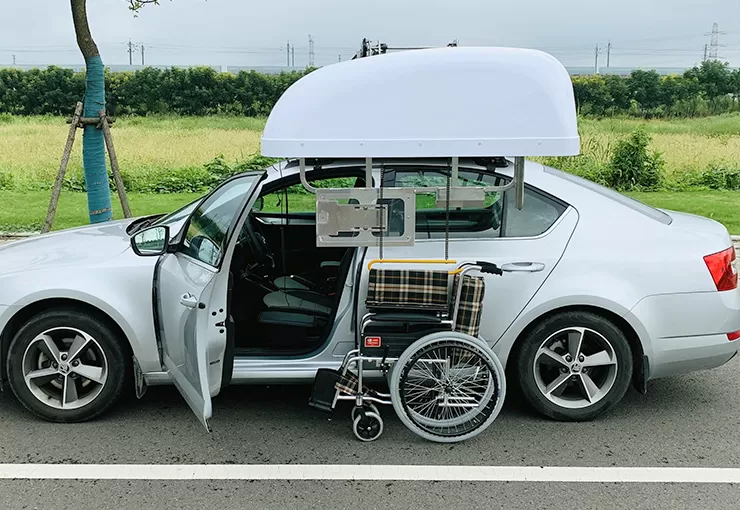

WCT Wheelchair Car Roof Box

  • WCT wheelchair car roof box is designed to help the wheelchair driver to stow wheelchair easily after getting seated.

  • It is installed on roof of car.

  • It is used to store foldable wheelchair.

  • This wheelchair car roof box can be operated by the driver of wheelchair occupant.

  • It is operated by remote control to take wheelchair in/out of equipment.

  • Also it can be controlled by APP;

  • It is driven by a motor which can stow the wheelchair in 30 seconds.

  • It can adapt to left-drive car or right-drive car.

Consult Now
Product Details
Technical Parameter
  • EMARK certified;

  • Manual emergency function;

  • Suitable for foldable wheelchair;

  • Easy operation;

  • Store wheelchair on car roof automatically when wheelchair is not needed;

  • Color: white.

WCT Wheelchair Car Roof Box


Technical Specifications:

Volatge12Vdc
Power60W
Loading capacity22kg
Own weight55.5kg
Car widthless than 1800mm
Car heightless than 1800mm

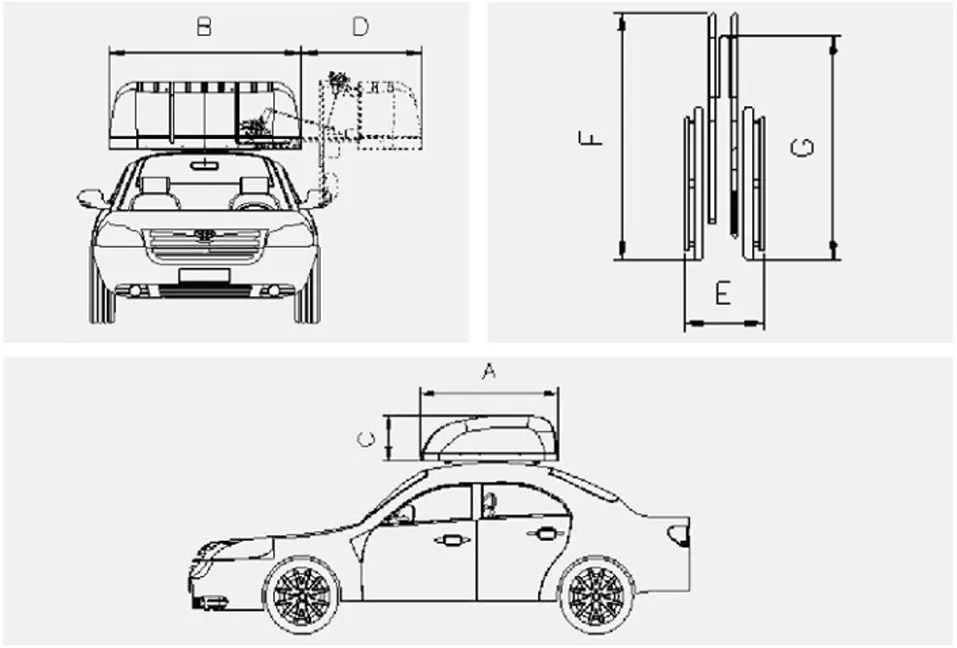

Parameters (unit:mm)

Modelgross length Agross width Bgross height Cextend distance Dwheelchair thickness (fold) Ewheelchair hight (fold) Fcushion height (fold) G
WCT-L14501320470-510820≤330≤1000≤820
WCT-R14501320470-510820≤330≤1000≤820
