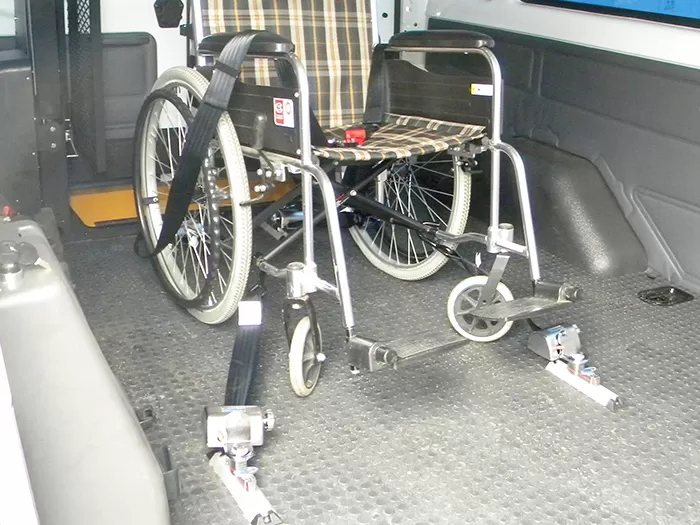

Wheelchair access to fixed area: The wheelchair user enters the vehicle via a ramp or lift and pushes the wheelchair to a dedicated stationary area (usually marked or guided with lights).

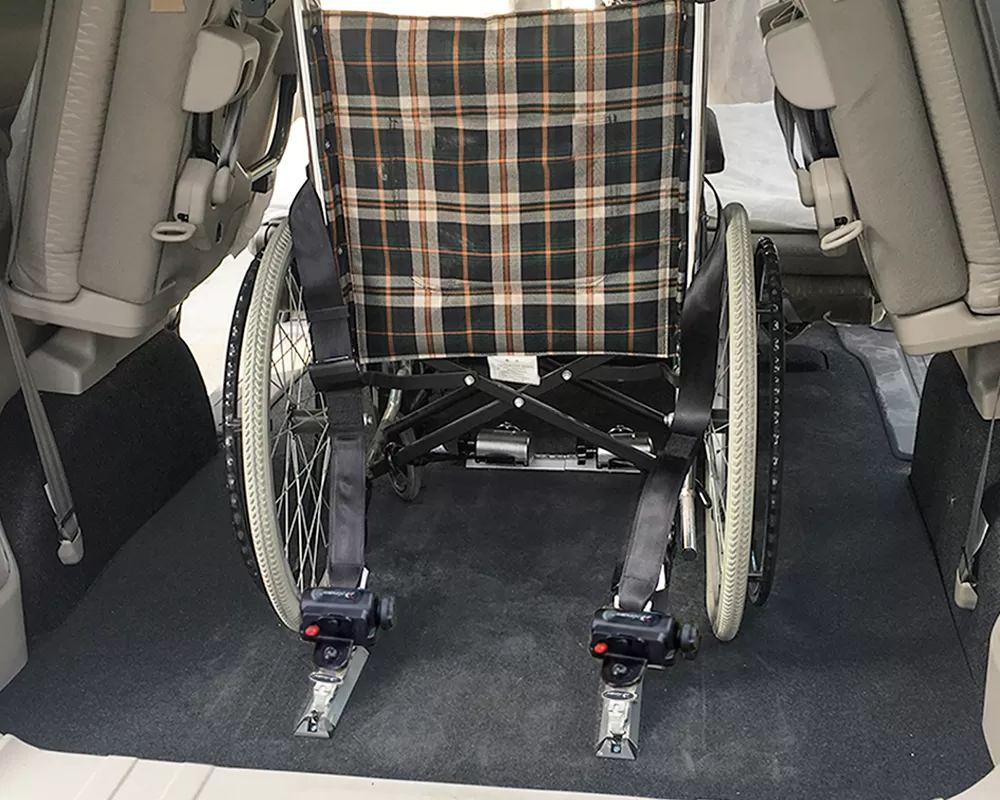

Fixation strap attachment: For manual immobilization (commonly found in buses), the driver or passenger hooks the 4 immobilization straps (front, back, left and right) to a solid part of the wheelchair (e.g. the frame or a dedicated immobilization ring). Tighten the straps to ensure that the wheelchair cannot move.
Seat belt securing: After the wheelchair has been secured, the user is required to fasten the vehicle seat belt. Some systems provide an additional shoulder belt or lumbar support for added stability.
Dynamic stabilization while driving: Fixed straps and locking mechanisms need to withstand the inertial force of the vehicle during acceleration, deceleration and turning to prevent the wheelchair from sliding or tipping.
Unlocking process: After arriving at the station, the driver or passenger manually loosens the fixing strap or presses the release button (automatic system). The wheelchair is unlocked and free to move off the vehicle.
High-strength material + impact-proof design, in line with ISO 10542 safety standards.
Suitable for most wheelchair models (users need to cooperate with the fixing ring for installation).

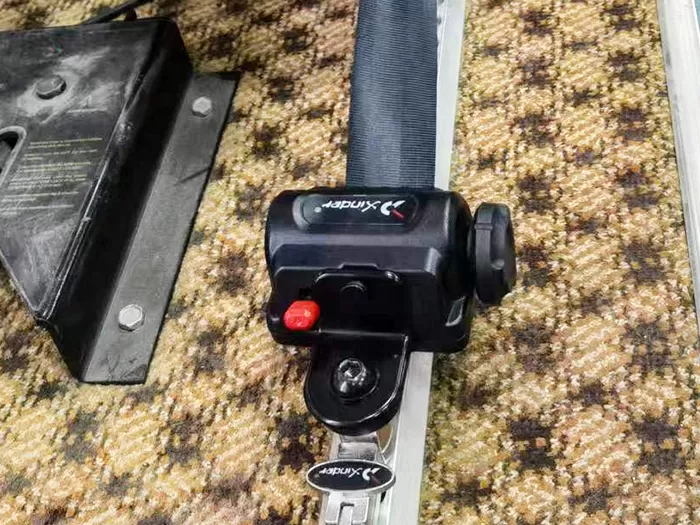

Manual operation simplifies the fixing process. The front and rear distance of the fixing device on the track is adjustable.

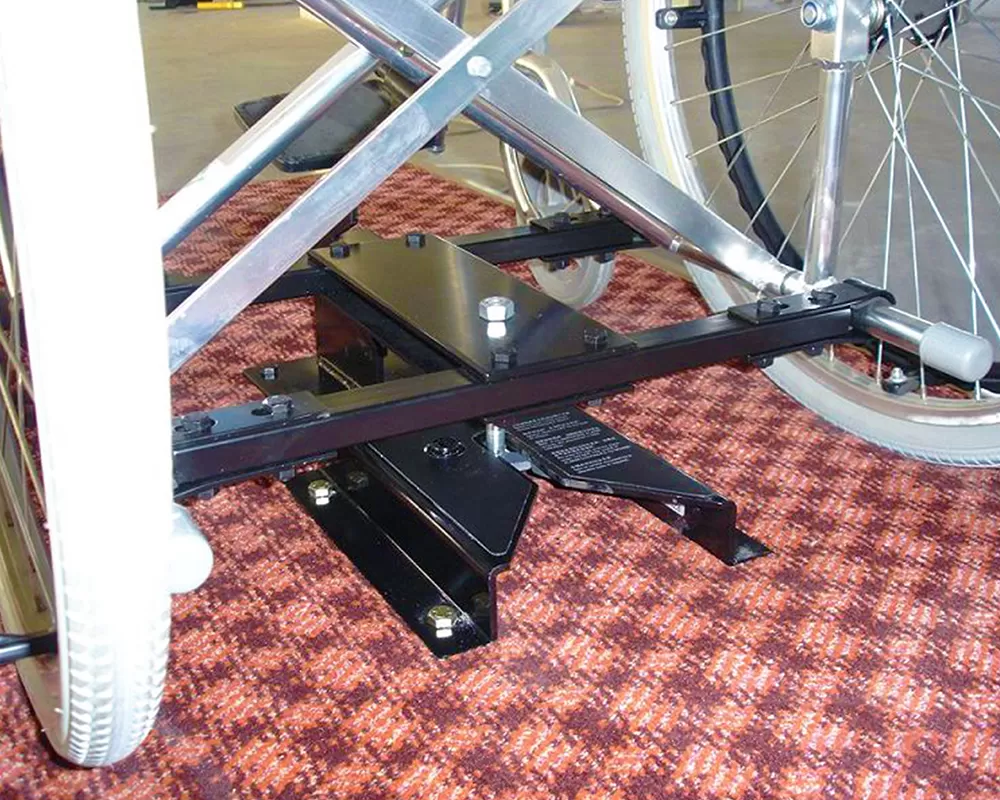

There are embedded, surface, and circular tracks available, suitable for different vehicle conditions.
Suitable for buses of all sizes, a wheelchair area needs to be specially allocated in the bus, and the appropriate track type can be selected according to the vehicle condition.
