Vehicle Accessibility Facilities
Vehicle Accessibility Facilities

WL-D-1300-720 Wheelchair Lift

  • This series wheelchair lift is to provide adaptation solutions for people with reduced or limited mobility.

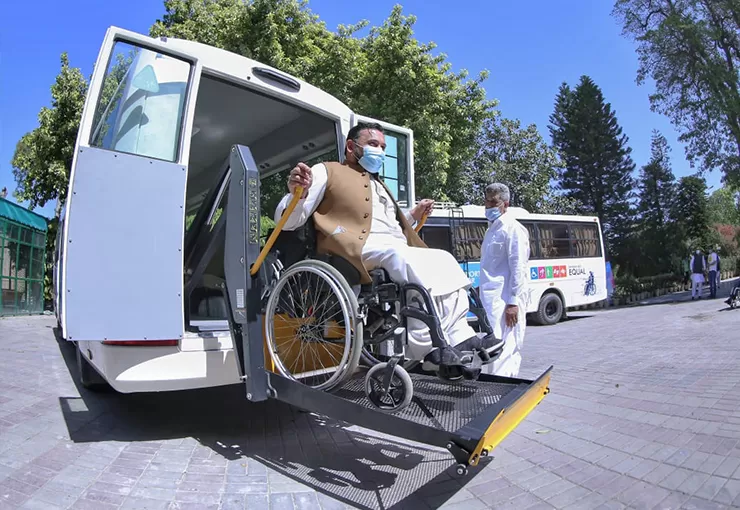

  • It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

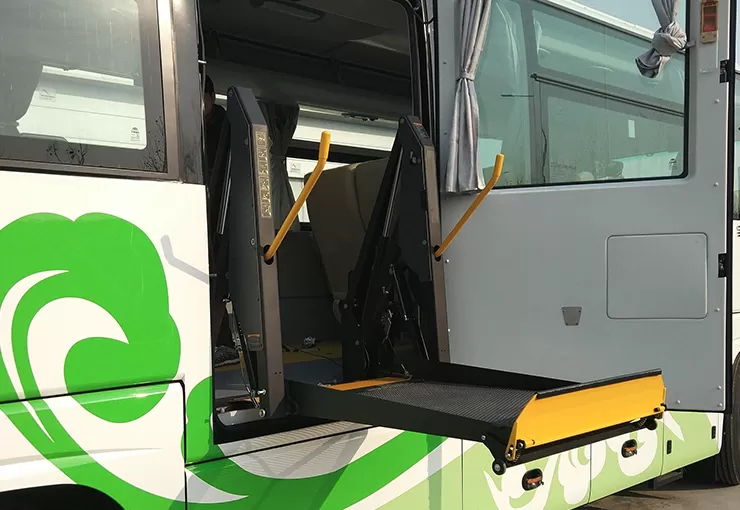

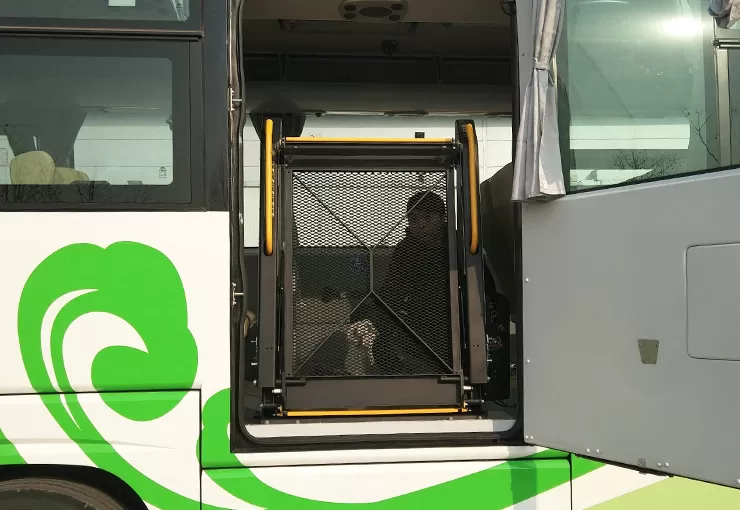

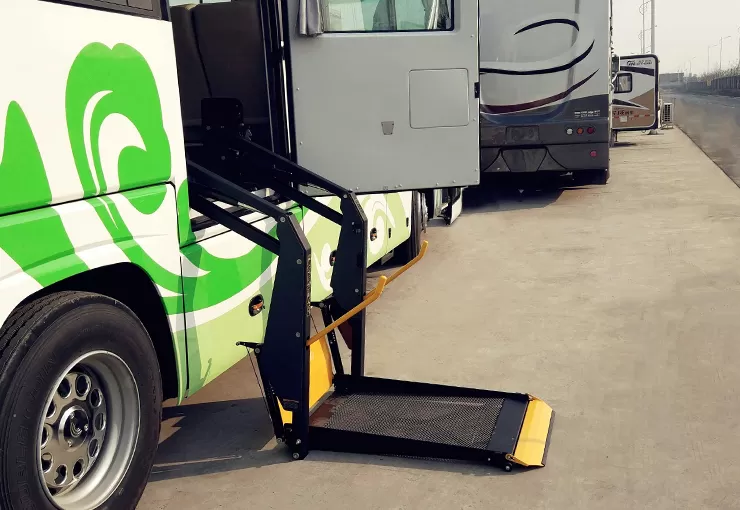

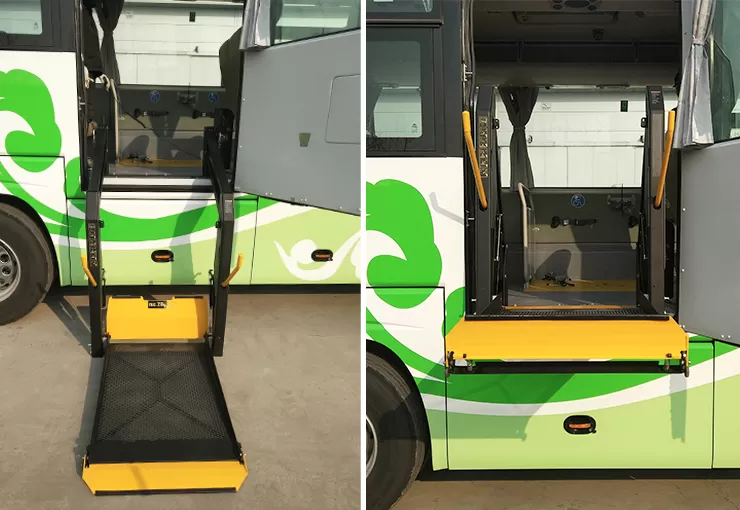

  • This wheelchair lift can be installed at the rear door or side door of bus.

  • Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

  • This lift is operated by a wired remote control or your mobilephone.

  • It also can be operated manually for emergency.

  • It is CE and EMARK certified.

  • Loading capacity is 350kg.

Safety Certification
Safety Certification
Consult Now
Product Details
Technical Parameter
  • Solid platform provides additional safety;

  • Mechanical auotomatic roll stops;

  • Warning sound during working;

  • Powerful hydraulic system ensures smooth and stable movements;

  • Equip with handrails to offer increased comfort and security;

  • Anti-skid platform;

  • Manual backup function;

  • Self-locking device;

  • Can be controlled by your mobilephone (option).


WL-D-1300-720 Wheelchair Lift


Technical Specifications:

Volatge12Vdc or 24Vdc
Power500W
Loading capacity350kg

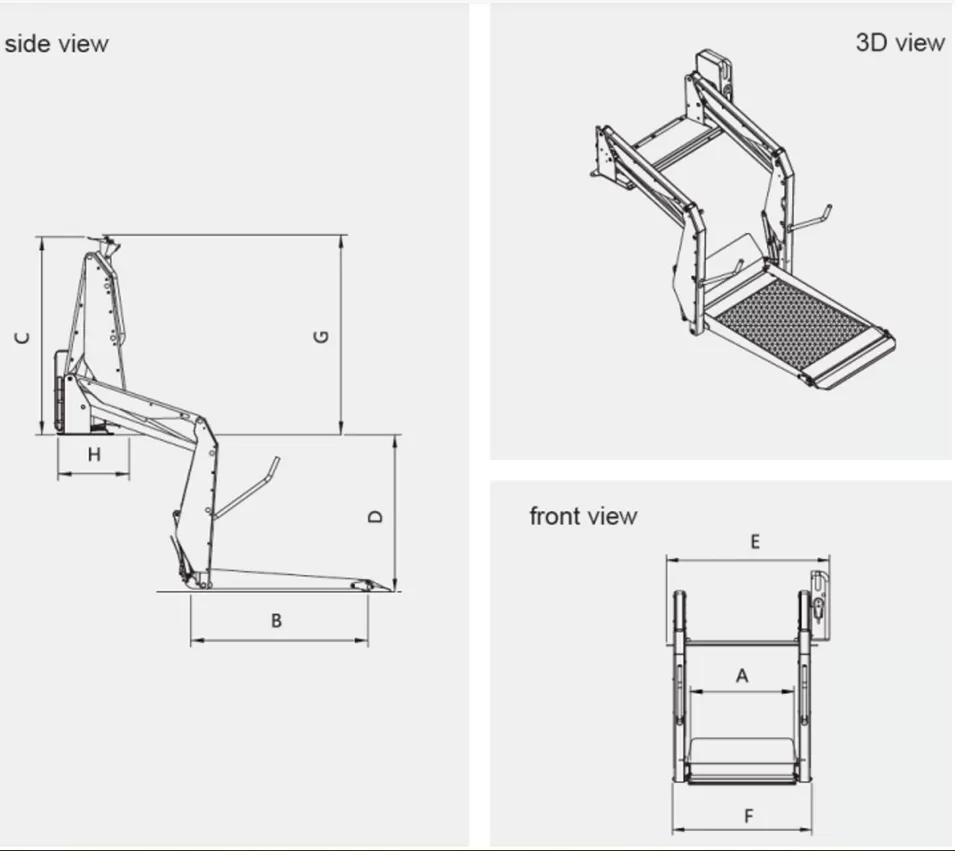

Parameters (unit:mm)

ModelPlatform net width APlatform net length BOverall height CMax lifting height DOverall width EDoor net width FDoor net height GDepth H
WL-D-1300-720720114013351200114011501360400
