Solid platform provides additional safety;
Mechanical auotomatic roll stops;
Warning sound during working;
Powerful hydraulic system ensures smooth and stable movements;
Equip with handrails to offer increased comfort and security;
Anti-skid platform;
Manual backup function;
Self-locking device;
Can be controlled by your mobilephone (option).
Technical Specifications:
Volatge | 12Vdc or 24Vdc |
Power | 500W |
Loading capacity | 350kg |

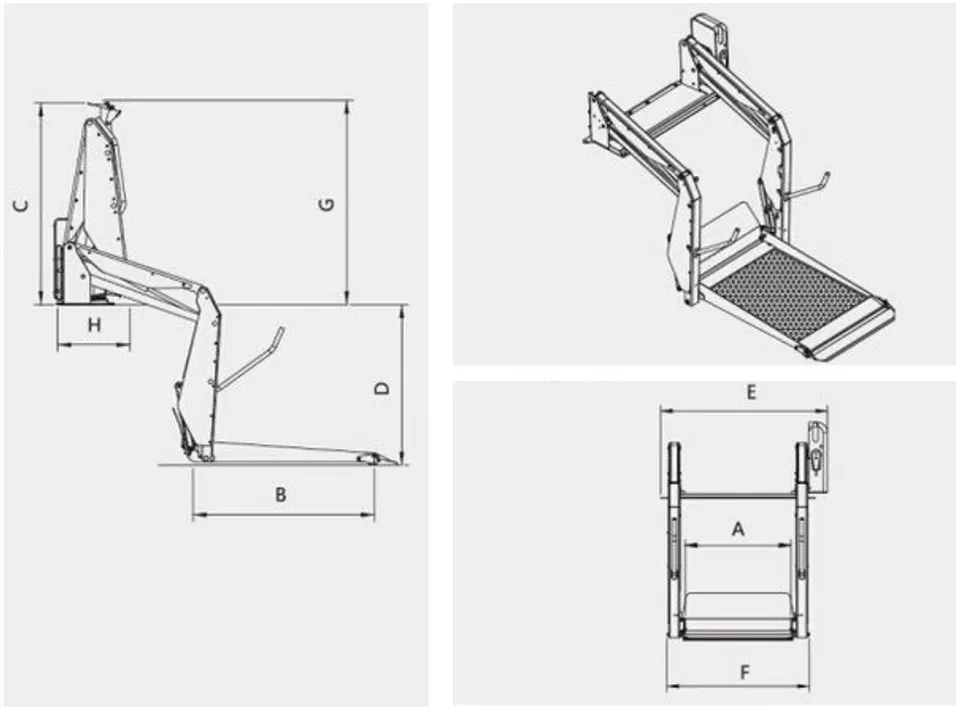

Parameters (unit:mm)
Model | Platform net width A | Platform net length B | Overall height C | Max lifting height D | Overall width E | Door net width F | Door net height G | Depth H |
WL-D-880-1150 | 720 | 1140 | 1235 | 880-970 | 1140 | 1150 | 1260 | 375 |
WL-D-880-1250 | 820 | 1240 | 1235 | 880-970 | 1240 | 1250 | 1260 | 375 |
WL-D-1300-720 | 720 | 1140 | 1335 | 1200 | 1140 | 1150 | 1360 | 400 |
