WL-D-880S Wheelchair Lift

  • This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

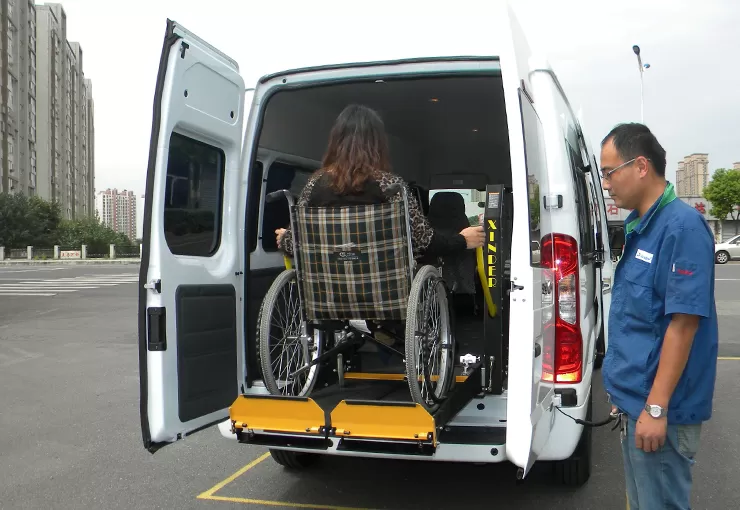

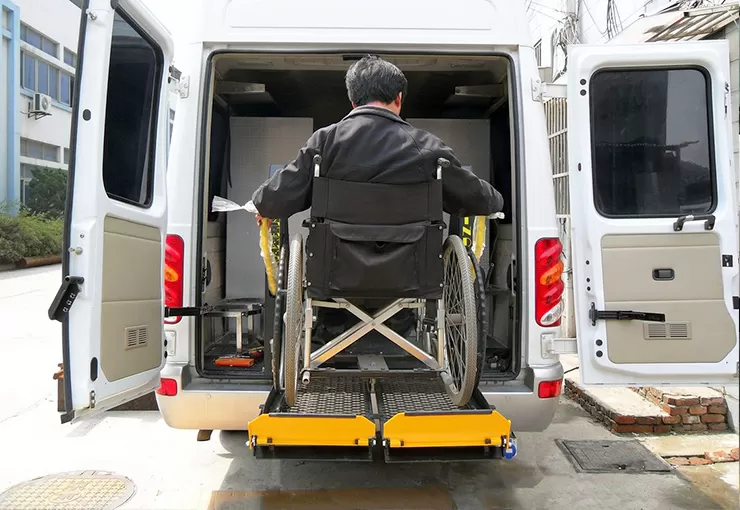

  • It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

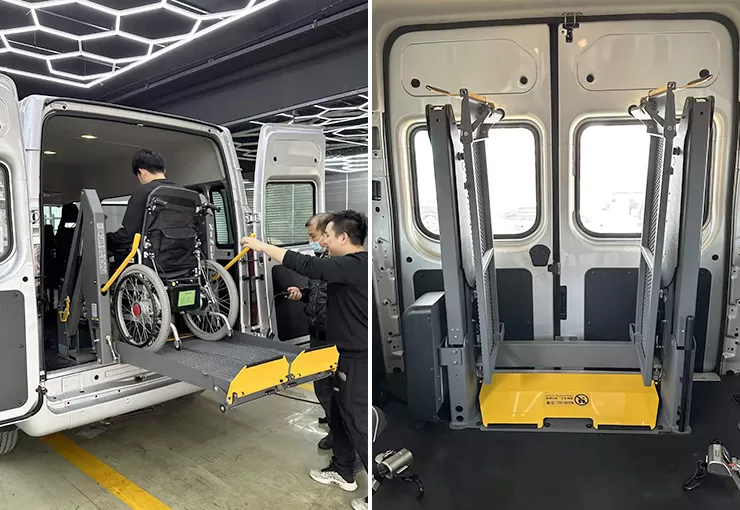

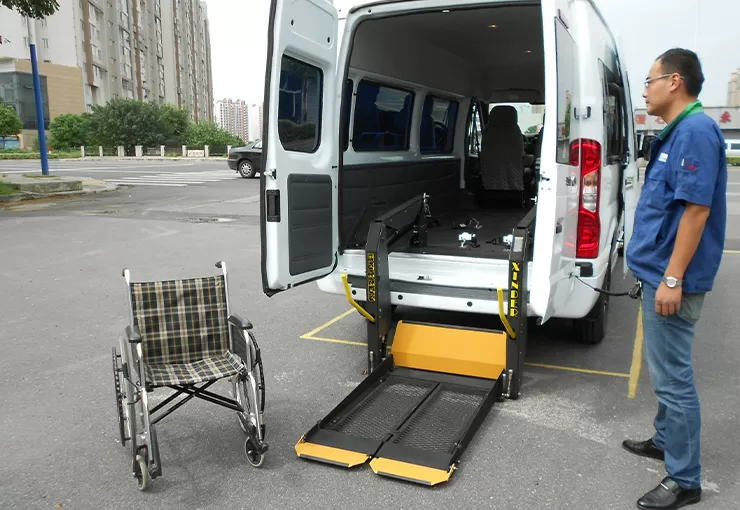

  • This wheelchair lift can be installed at the rear door or side door.

  • Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

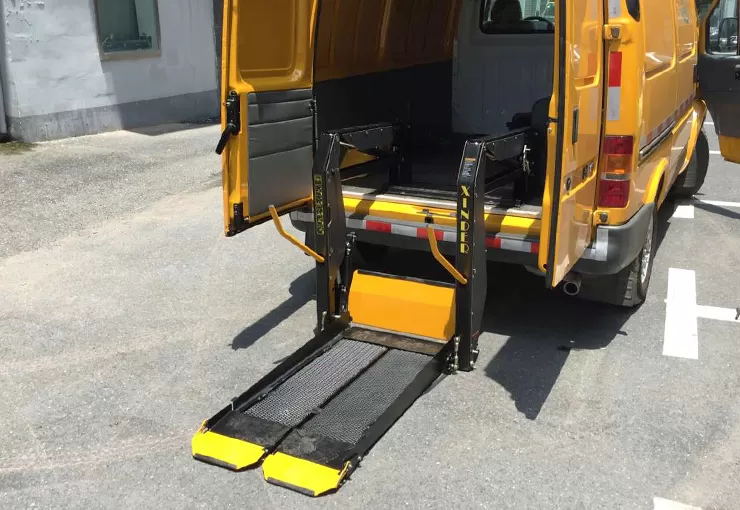

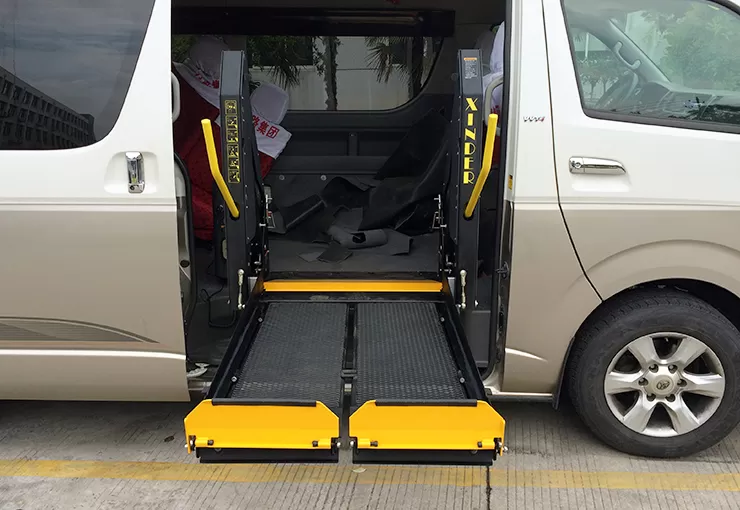

  • WL-D-880S wheelchair lift has split platform;

  • Provides good visibility both for driver and passengers when stowed;

  • Operated by the wired remote control or by your mobilephone;

  • It also can be operated manually for emergency;

  • CE and EMARK certified;

  • Loading capacity:350kg.

Consult Now
Product Details
Technical Parameter
  • Split platform provides clear path and good visibility both for passengers and the dricer;

  • Mechanical auotomatic roll stops;

  • Warning sound during working;

  • Powerful hydraulic system ensures smooth and stable movements;

  • Equip with handrails to offer increased comfort and security;

  • Anti-skid platform;

  • Manual backup function;

  • Self-locking device;

  • CE certificated;

  • High-gloss polyester powder coat finish to prevent corrosion;

  • Can be controlled by your mobilephone (option).

WL-D-880S Wheelchair Lift


Technical Specifications:

Volatge12Vdc or 24Vdc
Power500W
Loading capacity350kg


Parameters (unit:mm)

ModelPlatform net width APlatform net length BOverall height CMax lifting height DOverall width EDoor net width FDoor net height GDepth H
WL-D-880S-115072011501270880114011501300525
WL-D-880S-125082012151330880124012501350560
