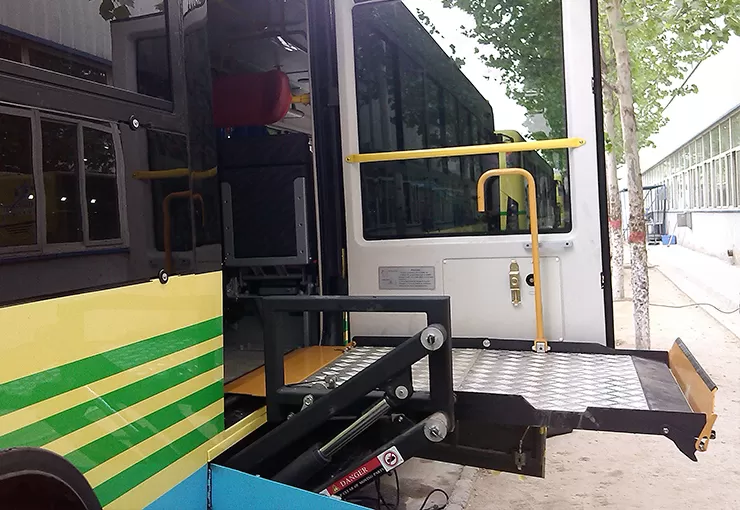

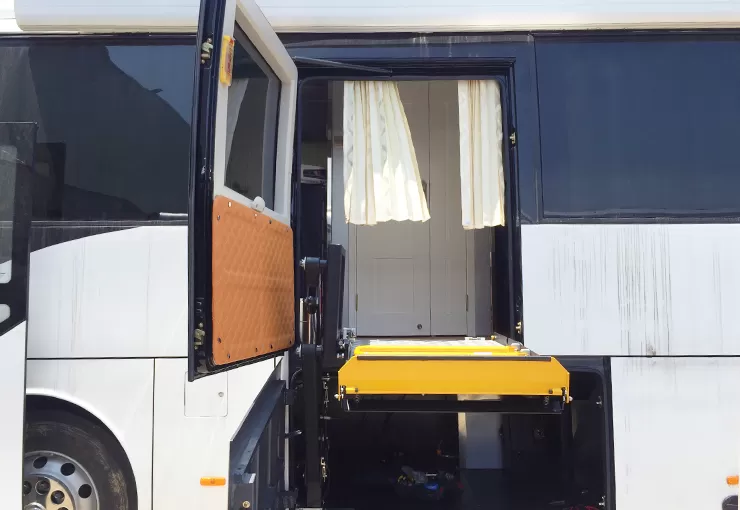

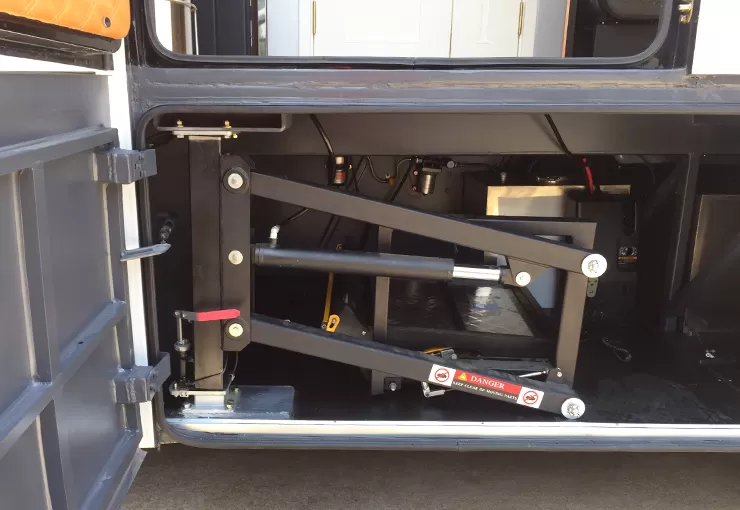

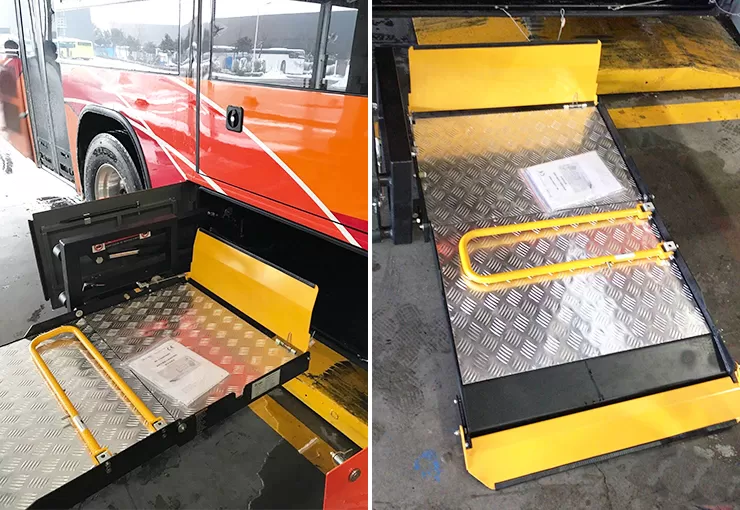

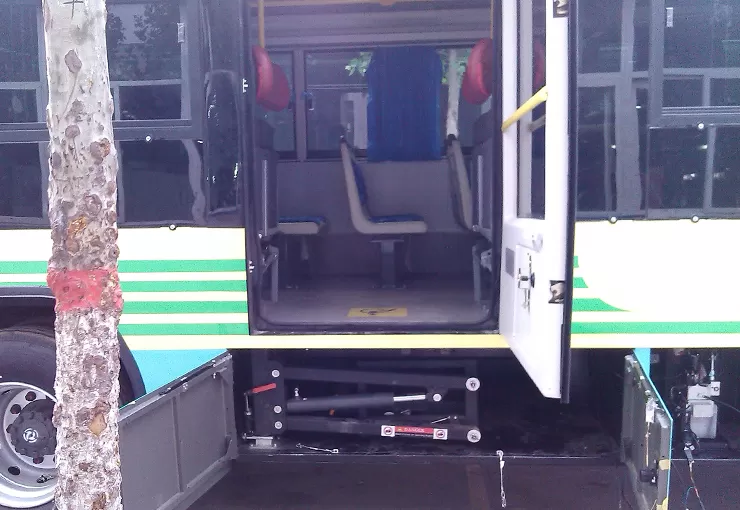

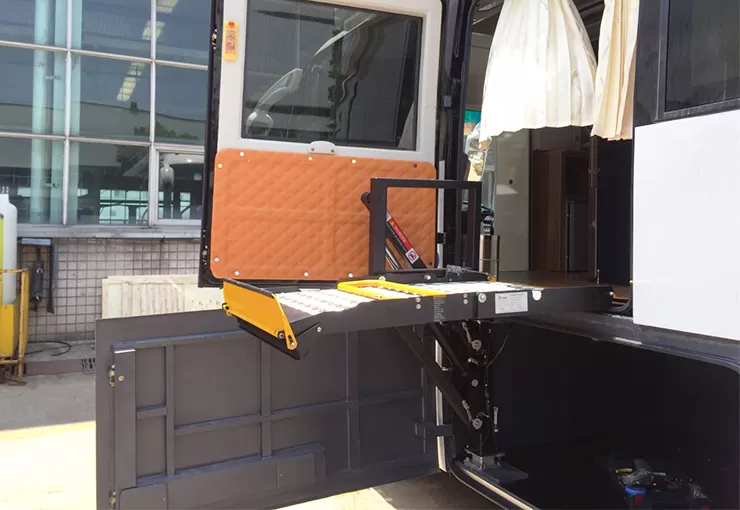

WL-T-1000G Wheelchair Lift

  • This wheelchair lift is installed in bus luggage.

  • It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.

  • It is a kind of semi-automatic wheelchair lift.

  • Open platform manually, but movements of lifting and lowering is automatic.

  • Max lifting height can reach 1000mm.

  • Rotating direction can be clockwise or anti-clockwise.


Safety Certification
Safety Certification
Consult Now
Product Details
Technical Parameter
  • Stays out of sight and out of way when not in use;

  • Doesn't obstruct view, access and emergency exit when stowed;

  • Warning sound during working;

  • Manual backup function for emergency;

  • Door interlock function;

  • Mechanical automatic roll stops;

  • Anti-skid platform;

  • Powerful hydraulic pump ensures smooth and stable movement;

  • Side handrails to increase comfort and security;


WL-T-1000G Wheelchair Lift


Technical Specifications:

Volatge12Vdc or 24Vdc
Power800W
Loading capacity300kg


Parameters (unit:mm)

Modelplatform net width Aplatform net length Blift gross height Cmax down stroke Dmax up stroke Elift gross width Fluggage door net width G
T-1000G82012204954605401150≥1600
T-1000G-77077012204954605401100≥1500
