Vehicle Accessibility Facilities
Vehicle Accessibility Facilities

WL-T-1600 Wheelchair Lift

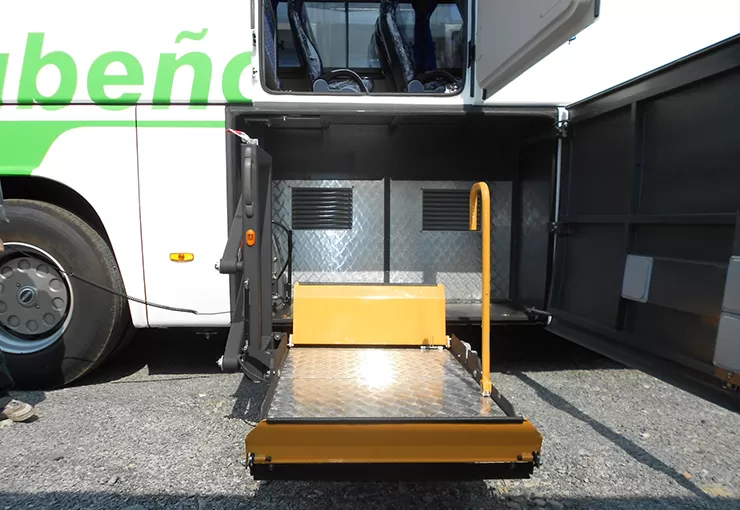

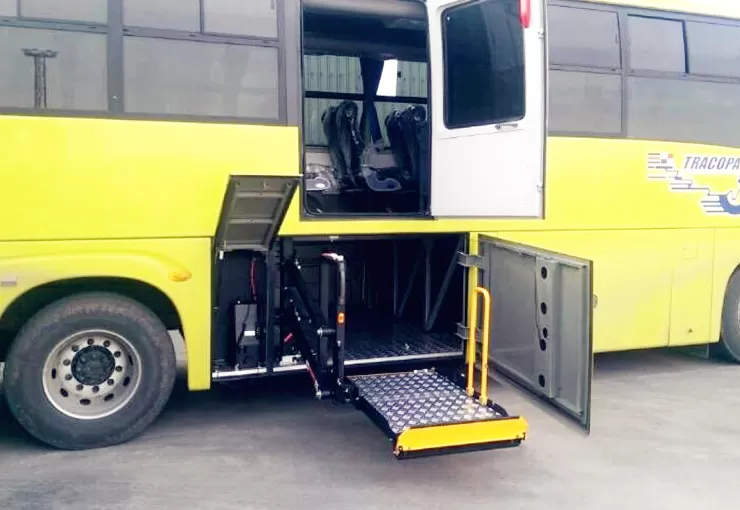

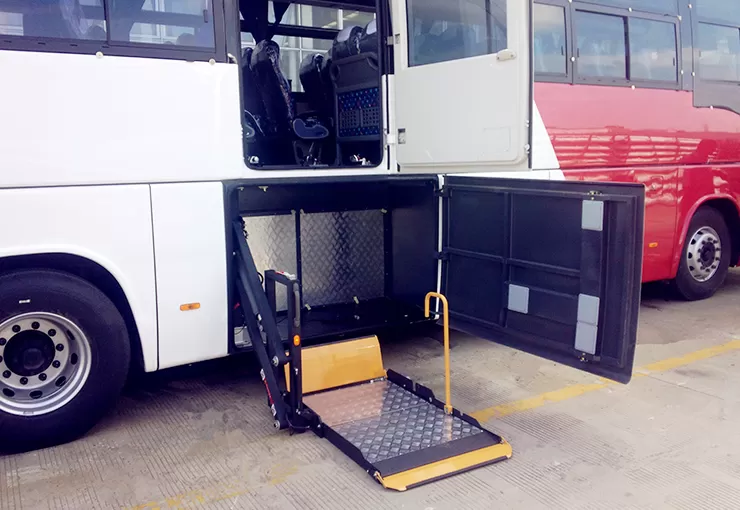

  • This wheelchair lift  is installed in bus luggage.

  • It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.

  • It is a kind of semi-automatic wheelchair lift.

  • Open platform manually, but movements of lifting and lowering is automatic.

  • Max lifting height can reach 1600mm.

  • Rotating direction can be clockwise or anti-clockwise.


Safety Certification
Safety Certification
Consult Now
Product Details
Technical Parameter

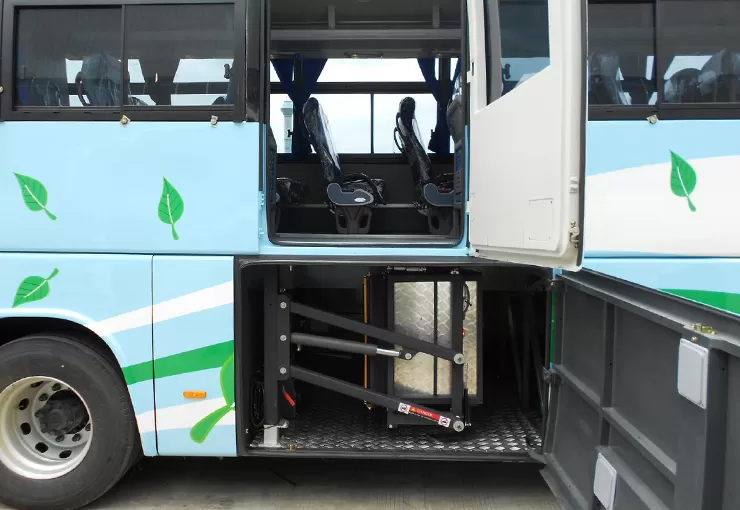

  • Stays out of sight and out of way when not in use;

  • Doesn't obstruct view, access and emergency exit when stowed;

  • Warning sound during working;

  • Manual backup function for emergency;

  • Door interlock function;

  • Mechanical automatic roll stops;

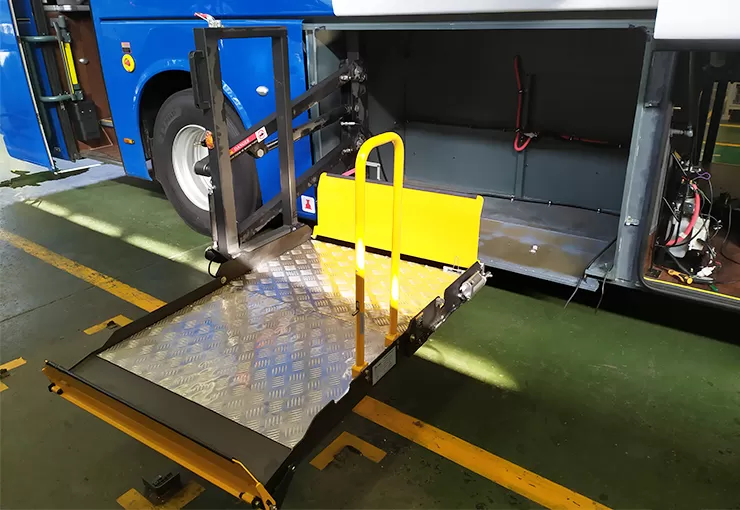

  • Anti-skid platform;

  • Powerful hydraulic pump ensures smooth and stable movement;

  • Side handrails to increase comfort and security.

WL-T-1600 Wheelchair Lift


Technical Specifications:

Volatge12Vdc or 24Vdc
Power800W
Loading capacity300kg

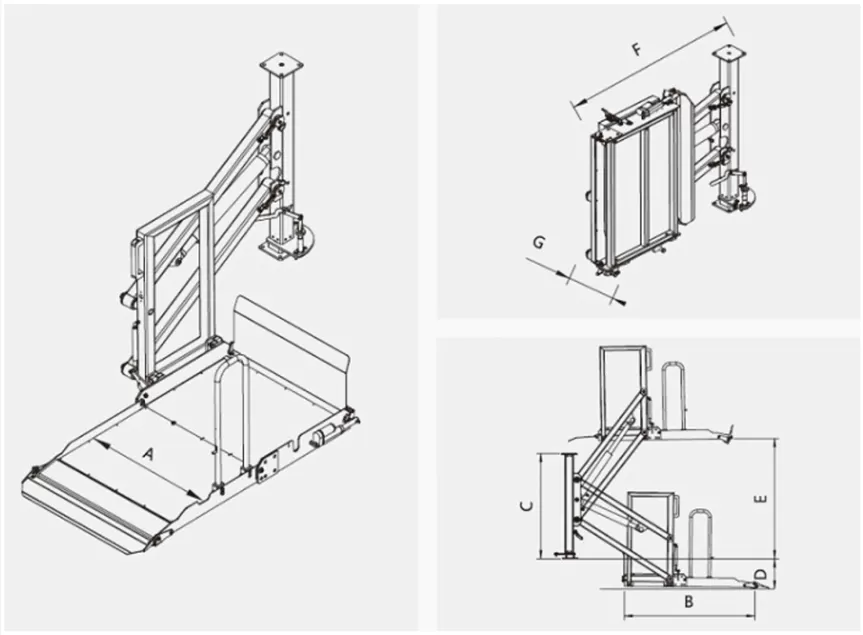

Parameters (unit:mm)

Modelplatform net width Aplatform net length Blift gross height Cmax down stroke Dmax up stroke Elift gross width Flift gross thickness G
T-16008201220100049012001400330
T-1600N720122091055010201300330
T-1600S7501220100049012001330330
