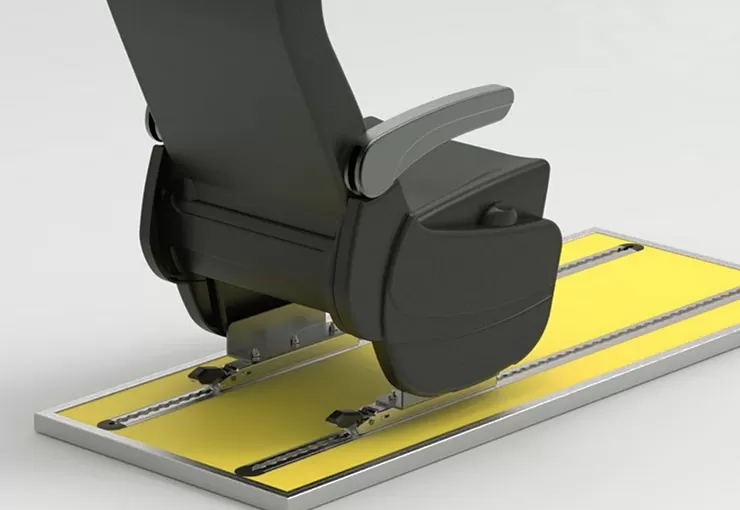

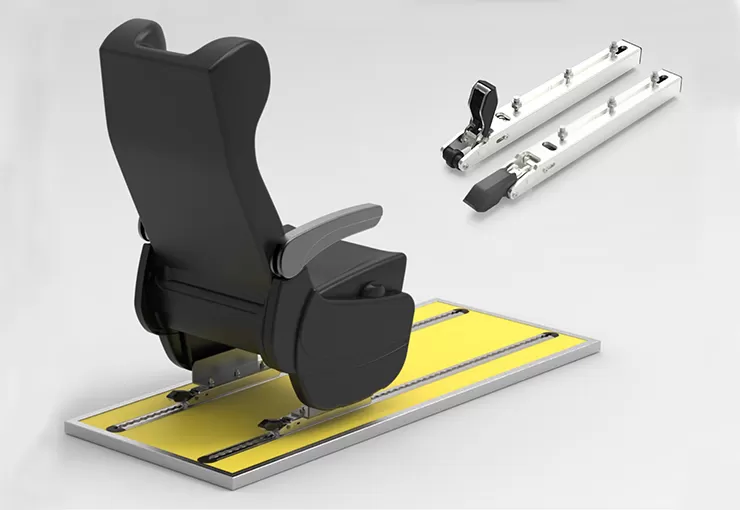

X-804 Seat Fixing System

  • Generally, if there is a passenger of wheelchair occupant, there will be a tie down system required. In that case, some seats have to be removed, and the number and utilization rate of seat will be reduced if the tiw down system is not necessary.

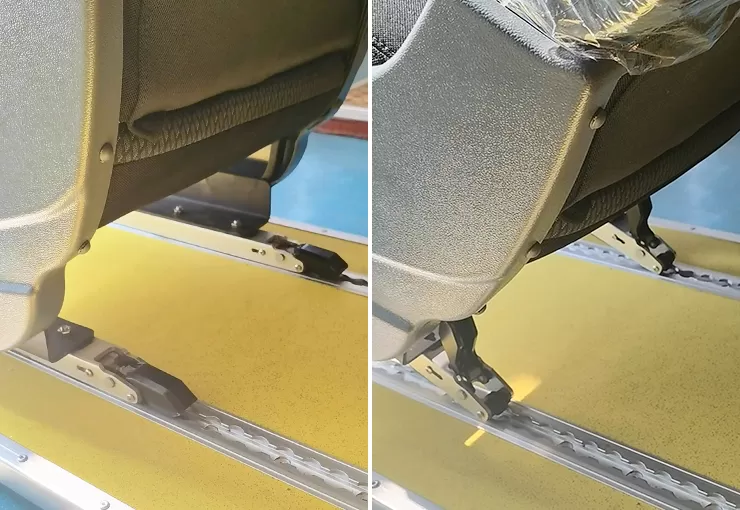

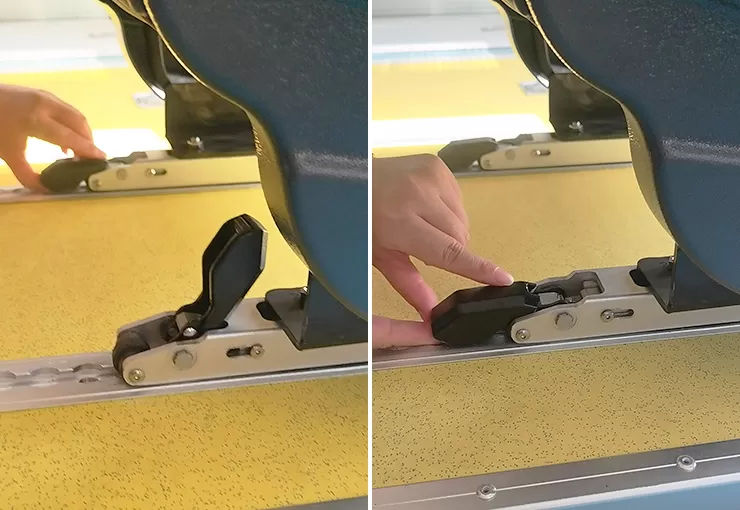

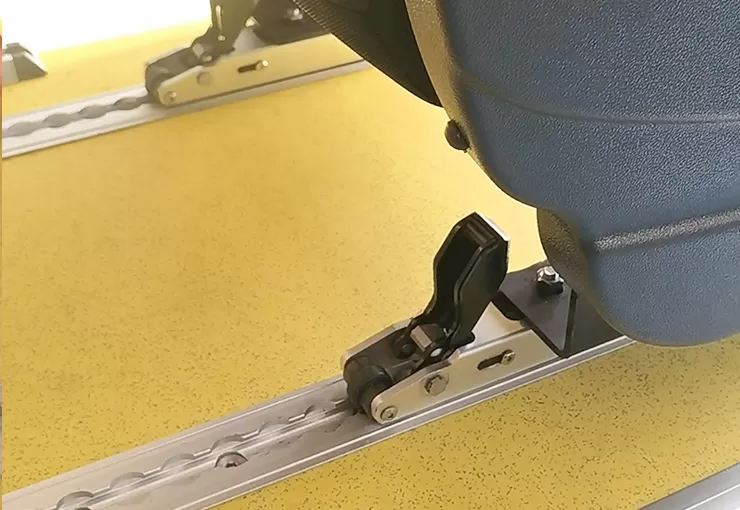

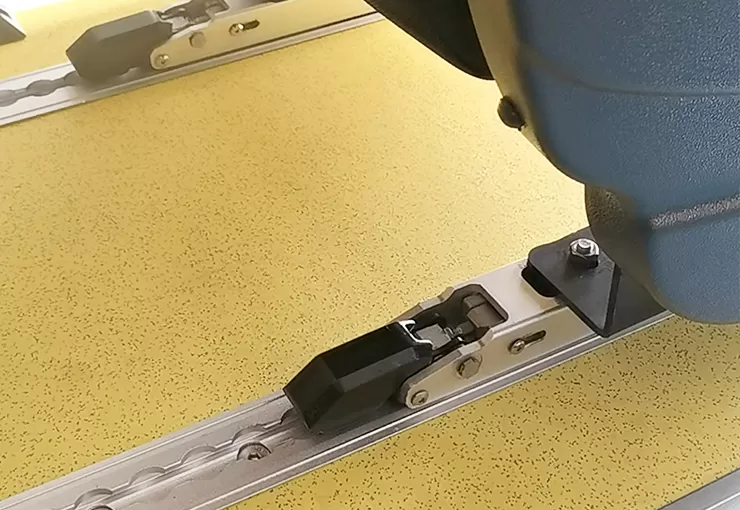

  • By using this seat fixing system, vehicle seats can be quickly installed on the floor tracks or quickly removed just by hand without any tools, which is vonvenient.

  • The advantage of this system is that if there is a passenger of wheelchair occupant, it is conveniet to fix wheelchair by wheelchair tie down system on the floor tracks.

  • If there is no passenger of wheelchair occupant, it is also convenient to remount bus seats on the same floor tracks.

  • It can save waiting time for the transportation.

Consult Now
Product Details
Technical Parameter
  • Easy to install and easy to remove;

  • Quick operation;

  • Distance between chairs is adjustable after mounted;

  • Tracks length depend on chairs number;

  • We supply surface tracks and cupped tracks;

  • Optional track sealing strip available.

part name1 row2 rows3 rows
seat fixing anchorage2 units4 units6 units
tracks2 units2 units2 units
track end caps4 units4 units4 units
mounting bolts1 set1 set1 set
rubber sealing strip (option)2 units2 units2 units
