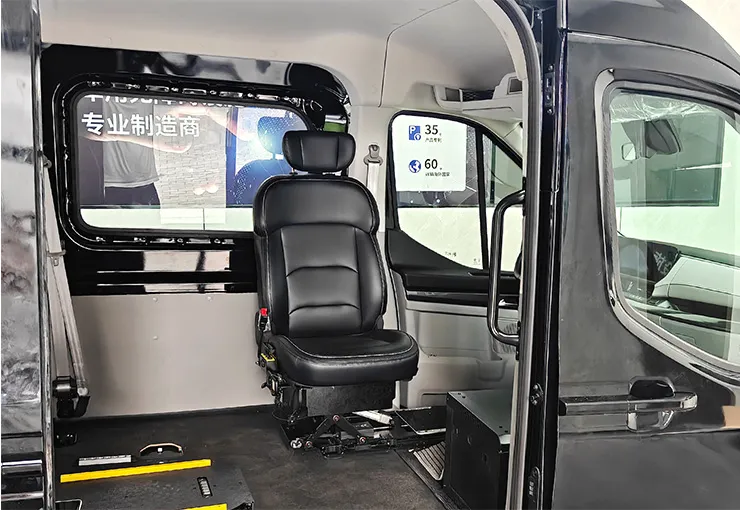

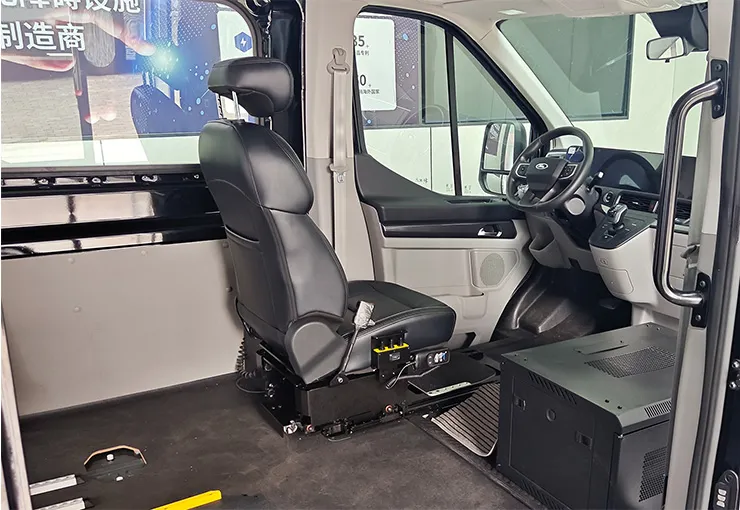

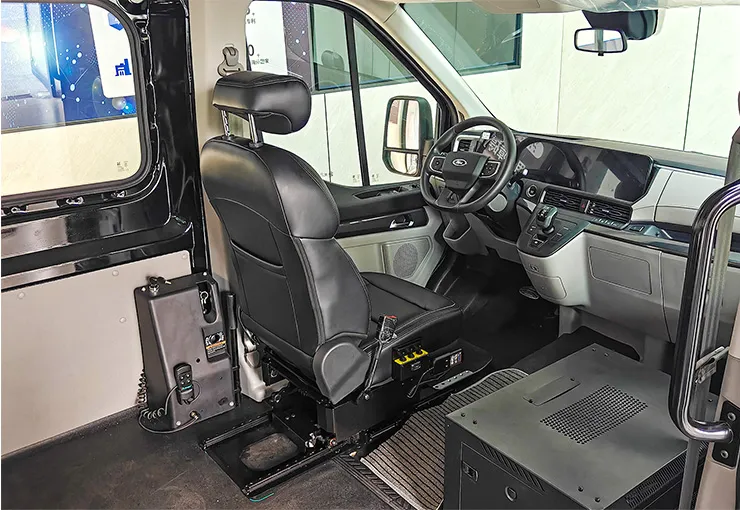

S-Base 6-Way Seat

The 6-way seat is designed to facilitate the transfer of users between a wheelchair and the vehicle seat; it can be installed in either the driver's or passenger's position. The seat operates smoothly, reliably, and safely, with a maximum load capacity of 150 kg. It is electrically operated, allowing users to stop at any desired position using a fingertip toggle switch or a handheld controller; it is suitable for vehicles such as light buses and MPVs. The seat's rotation and longitudinal movement can be programmed via a handheld switch or a WeChat mini-program.


Safety Certification
Safety Certification
Consult Now APP Download
Product
Technical Parameter

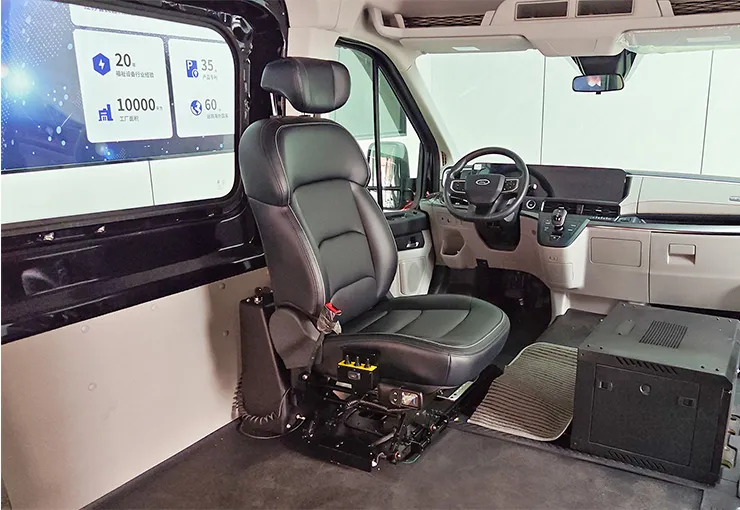

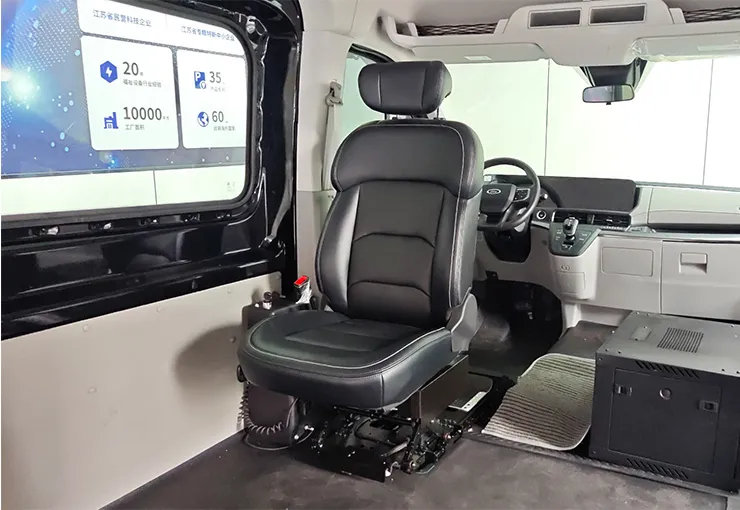

Details of S-Base 6-Way Seat

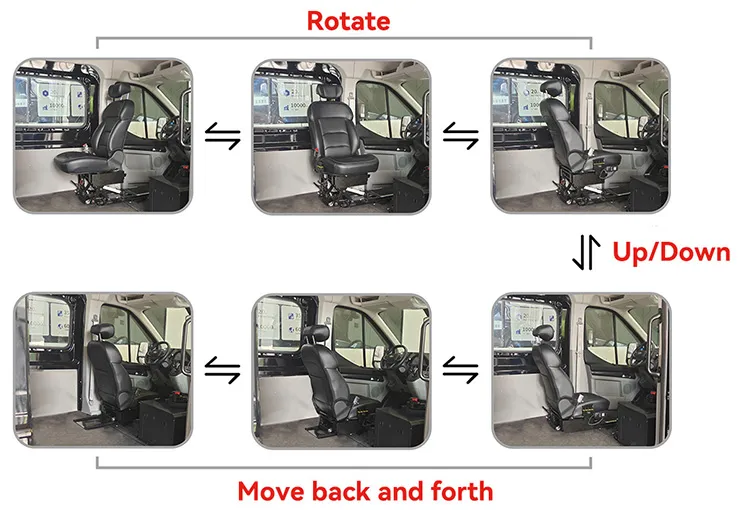

The S-base 6-way seat is a new accessibility transfer device from Xindetech, designed to facilitate smooth transfers between a wheelchair and the vehicle seat; it can be installed in either the driver's or passenger's position. With a maximum load capacity of 150 kg, the seat supports longitudinal sliding, 180° rotation, and vertical lifting. Users can program movement paths and perform daily operations via a handheld controller or a mobile app, while manual emergency operation is also supported. This seat enables a seamless transfer process for drivers with disabilities—moving from a wheelchair to the driving position—effectively solving the challenge of moving from the rear to the front of the vehicle; it is suitable for light passenger vehicles, MPVs, and similar models.



Programmable Modes: Seat rotation, longitudinal movement, and backrest angle/height adjustments can all be programmed;

Wireless Control: The seat features Bluetooth connectivity and supports direct wireless control via a mobile app;

Obstacle Protection: Automatically stops upon encountering an obstacle and displays a notification on the screen;

Sleep Mode: Enters sleep mode after 10 seconds of inactivity, maintaining low static current consumption;

Manual Emergency Operation: Manual mode is available in the event of electrical failure or power loss.


Operating voltage

12V

Rated load

120kg

Maximum load

150kg

Lifting stroke

160-365mm

Rotation angle

Left/right 180°

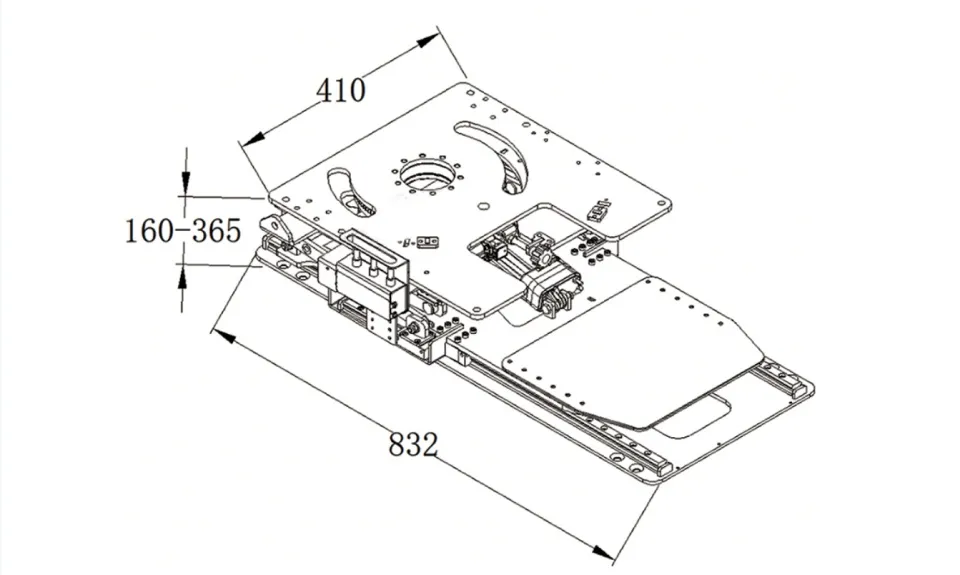

Total length

Total width

Mounting thickness

Rotation angle

Front-to-rear travel

Travel distance

S-base

832

410

160

Left/right 0-180°

515

205


S-Base 6-Way Seat Features

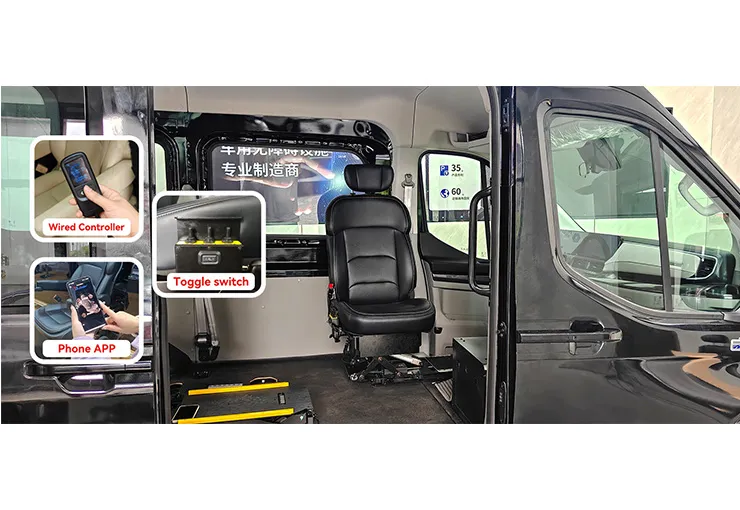

Multiple Control Methods
Multiple Control Methods

Supports three control methods: wired handheld controller, mobile app, and toggle switch.

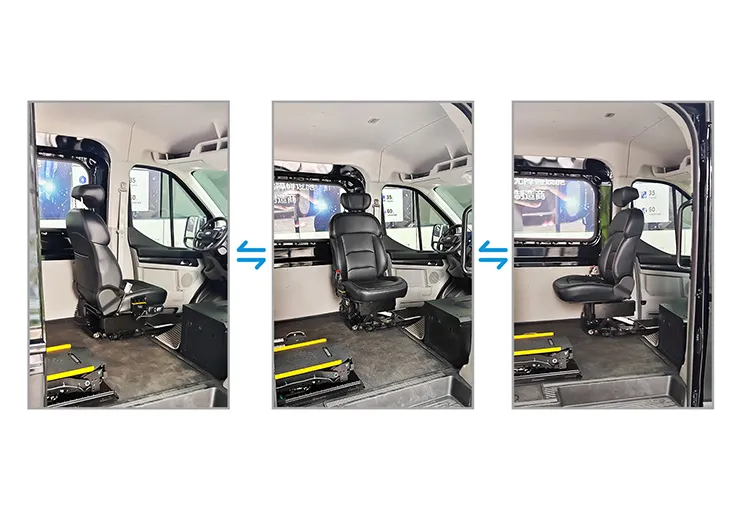

180° rotation adjustment
180° rotation adjustment

Facilitates wheelchair transfers for passengers boarding via the tailgate or side door.


S-Base 6-Way Seat Performance

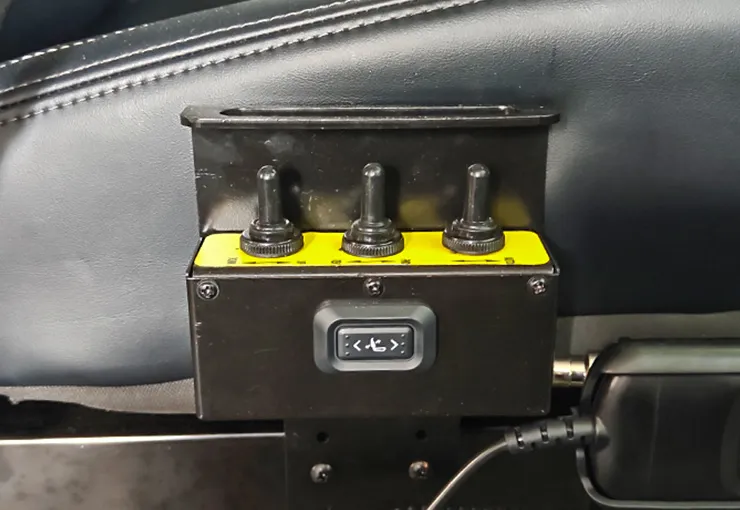

Toggle switches and physical buttons
Toggle switches and physical buttons

More convenient and reliable operation

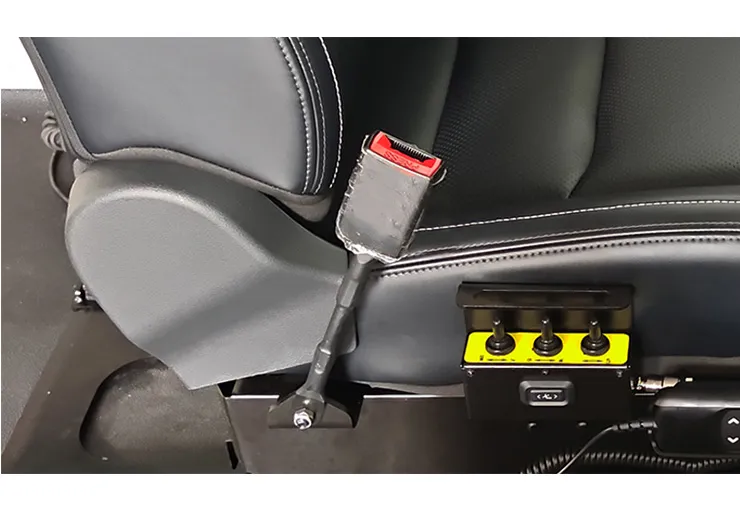

TStandard seatbelts
TStandard seatbelts

Ensuring passenger safety

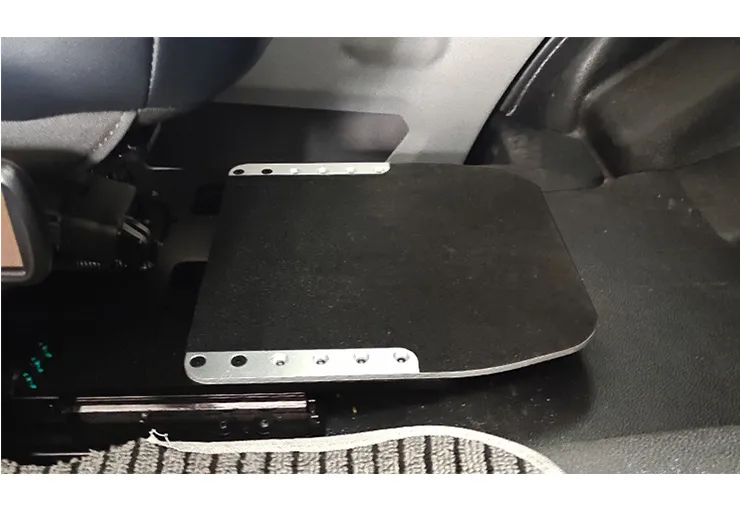

Front footboard
Front footboard

Comfortable leg positioning
